CE01TV CATV / RF OVER CAT5E EXTENDER 2M RG6 COAX RJ45 'F' BALUNS PR

FEATURES

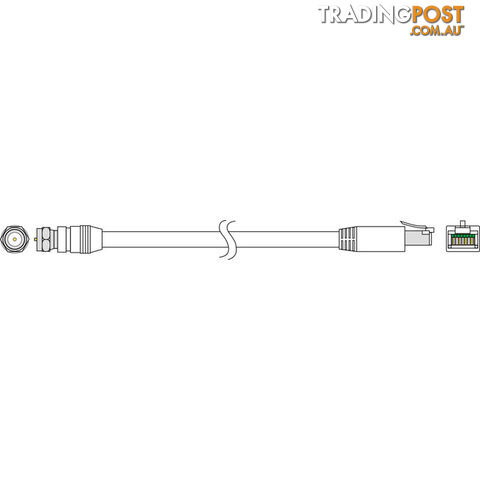

The CATV CAT5 Extender to RJ45 with 2m RG6 coax cable allows traditional 75-ohm coaxial cable to be replaced by a single pair Cat5e UTP cable. Used in pairs, it allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. It provides a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, even private homes.
The CATV CAT5 Extender works in conjunction with CATV splitters, amplifiers and cable modems for a total cabling solution. FEATURES Shielded RJ45 male with 2m RG6 coax cable Passive type, no external power required Support bandwidth 40Mhz to 2.4GHz Distance up to 30m at 2.4GHz frequency Max. distance up to 100m based on low frequency Work with CATV, satellite receivers, RF splitter and amplifier Package include 2 units (1 pair)

SPECIFICATIONS

Input/Output Interface F (male) x 1, RJ45 x 1 Support Bandwidth 40MHz ~2.4GHz 3dB Bandwidth 40 MHz ~ 1 GHz Insert Loss 18 dB @ 40 ~ 1 GHz Common-Mode Rejection Ratio (CMRR) -20dB or higher @ 40 MHz ~ 1 GHz CAT.5e/6 UTP Cable 24AWG, Impendence:100Ω Coax Cable Impendence: 75Ω @ 1 MHz (RG6) Transmission Distance Based on frequency or input video signal level, max. up to 100m Temperature Operation: 0 to 55°C, Storage: -20 TO 85°C,Humidity: up to 95% Dimensions 14.2 x 15.6 x 2000mm Weight 135g

TRANSMISSION RANGES

The following distance chart reference may different based on cable quality and input/output signal level. .rpg_table { border-collapse: collapse; margin: 15px; } .rpg_table th, .rpg_table td { padding: 5px 12px; line-height:30px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: middle; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left } .rpg_table th, .rpg_table td { text-align:center !important; } .rpg_table .spacer { border: 0 !important; width:15px !important; } .rpg_table .no-wrap { white-space: nowrap !important; } Cable Frequency Application Range Distance Remark CAT5e UTP 54~174MHz CATV 2~6, 95~99, 14~22 100m The use of an amplifier may increase the application range and working distance CAT5e UTP 174~300MHz CATV 7~13, 23~36 80m CAT5e UTP 300~648MHz CATV 37~94 50m CAT5e UTP 648~1002MHz CATV 100~158 30m   CAT5e UTP 1002~2200MHz Satellite signal



Weight: 0.2740 kg
Barcode Number: 9328202030214
