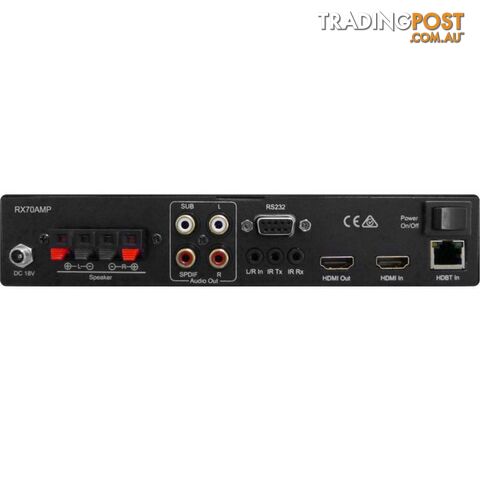

RX70AMP HDBASET RECEIVER AND AUDIO AMP BLUSTREAM

HDBASET RECEIVER WITH BUILT IN MULTI FUNCTION AUDIO AMPLIFIER FEATURES 3:1 Audio Switcher/Receiver - Audio from centralised source via HDBaseT Transmitter, Audio Return Channel (ARC) or local L/R source 70 transmission distance between device HDBaseT transmitter 2.1 stereo audio at 30w per channel - amplifier capability to drive 4, 6 & 8 Ohm speaker loads High quality preamplifier adjustment for tone/volume/sub/mute control Variable Analog line level outputs Subwoofer output S/PDIF loop out Bi - directional control of source via IR or RS232 Advanced EDID management for rapid integration of sources and displays HDMI v1.4 features supported HDCP compliant Internal ESD protection Compact size for flexible integration location SPECIFICATIONS Video Input Connectors: 1x RJ-45 connector, 1x HDMI Type A, female Video Output Connectors: 1x HDMI Type A, female Audio Output Connectors: 1x RCA(S/PDIF), 1x RCA (subwoofer), 1x 4-pin spring Terminal connector, 2x RCA (L/R) RS-232 serial port: DB-9, female IR Input ports: 2x 3.5mm stereo jack IR Output ports4: 1x 3.5mm stereo jack Rack-Mountable: rack ears included Dimensions (W x H x D): 428mm x 145mm x 43mm , withoutfeet Shipping Weight: 2.7kg Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature : -4°F to 140°F (-20°Cto 60°C) Power Supply: 18V/4A DC, screw connector SUPPLIED WITH: 1 x RX70AMP 1 x remote control 2 x mounting ear 1 x 18V/4A power supply 1 x IR emitter cable 1 x IR receiver cable User manual PDF file Weight: 1.47 kg Barcode Number: 9340242000552
