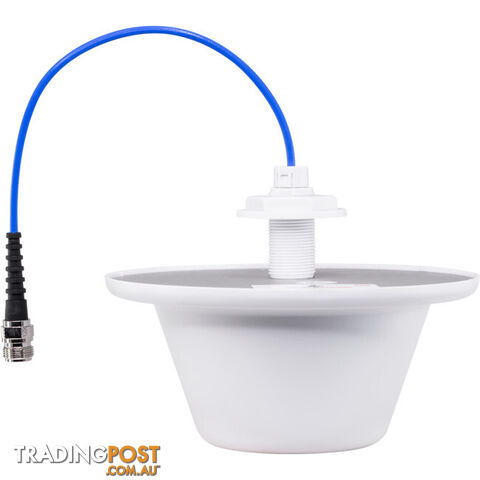

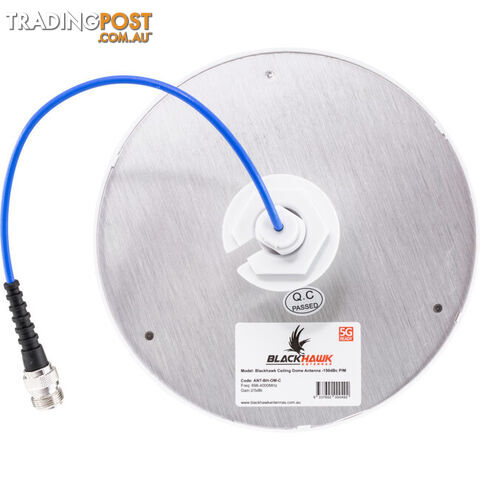

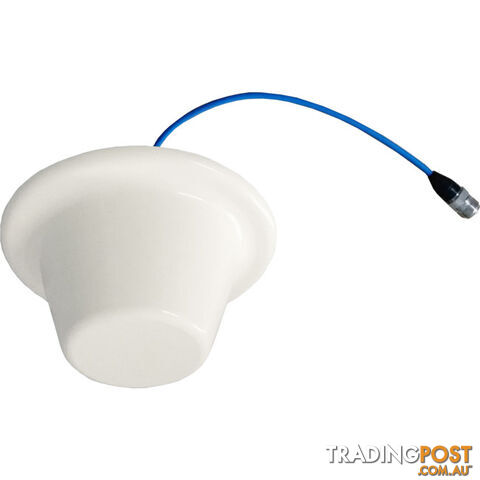

ANT-BH-OM-C INDOOR DOME CEILING ANTENNA BLACKHAWK

ANT-BH-OM-C - BLACKHAWK INDOOR DOME CEILING ANTENNA FEATURES 2.5 dBi gain across lower bands 698-960 MHz 3.5 dBi gain across upper bands 1710-2700 MHz ABS plastic and aluminium construction Threaded bulkhead mount for ceiling installation Short cable tail with N female connector Ideal for Cel-Fi GO repeater applications for marine and caravan Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G. Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal indoor antenna for Cel-Fi repeater systems. Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributedmobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive designsimilar to a smoke alarm. The Blackhawk Omni Ceiling Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.   Main Technical Specifications: Model ANT-BH-OM-C Frequency Range 698-960 MHz / 1710-2700 MH VSWR ≤2.0:1 /≤1.8:1 Input Impedance 50Ω Gain 2.5 / 3.5 dBi Polarization type Vertical Linear Horizontal beamwidth 360° (omnidirectional) Vertical beamwidth 90 / 55° F/B Ratio ≥23dB Max Power 50W Lightning protection DC ground Connector Type N Female RG58/U cable Short tail cable Weight 0.25kg Dimensions 210mm×180mm×44mm Radome material ABS plastic - White Radiator Material Brass and aluminium Working temperature -40°C~ 65°C   Weight: 0.3340 kg Barcode Number: 9337692000492
