AWC265T2 SINGLE STEREO 6.5" ALL WEATHER CEILING SPEAKER

AWC265- T2 SINGLE STEREO ALL WEATHER- 2 WAY IN-CEILING SPEAKER

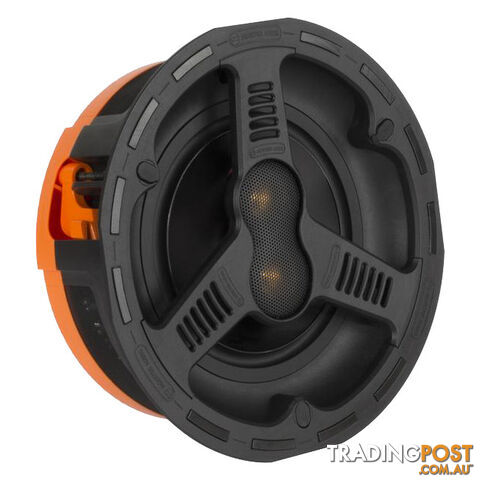

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on theAWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.



TECHNOLOGY
High Performance C-CAM bass and high frequency drivers

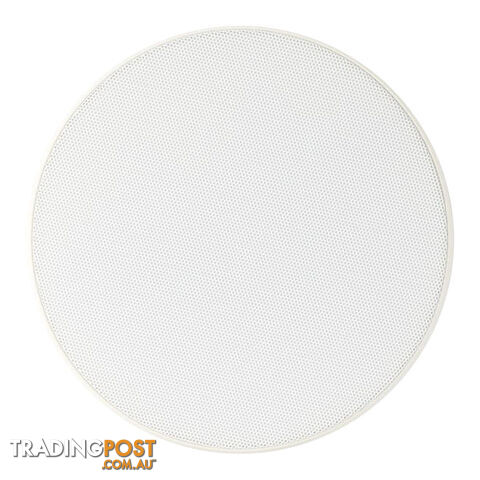

Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
Gold plated push terminals with silicon cover
Stainless fixing screws with Silicone covers
Tweeter level attenuation (internal) – set prior to installation
Applications: pool rooms, bathrooms, marine deck, universal outdoor installation



SPECIFICATIONS



Frequency response 60 Hz – 30 kHz


Nominal Impedance

8 8 ohms
Sensitivity (1W@1M) 88 db
Maximum SPL 105.8 dBA
Power Handling (RMS) 60 Watt
Recommended Amplifier Requirements 20-60 Watts
Drive Unit Complement

6.5" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)


Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Overall Diameter (Including Grille) 251.71 mm (915/16"
Mounting Depth

88.5 mm (31/2")


Cut-Out Hole Diameter 211 mm (81/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection 2 X 2PR Gold plated ‘push’ type terminals
Grille SS430 Stainless Steel
Construction Material Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant,RoHS2 Compliant)
Weight 2.04 kg (4 lb 8 oz)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R/CMBOX-R
