HEX100CSKIT 100M HDBASET CSC EXTENDER KIT 4K 60HZ 4 4 4 8- UP TO 70M

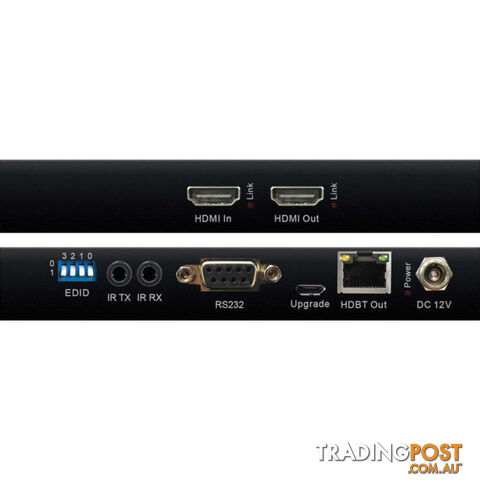

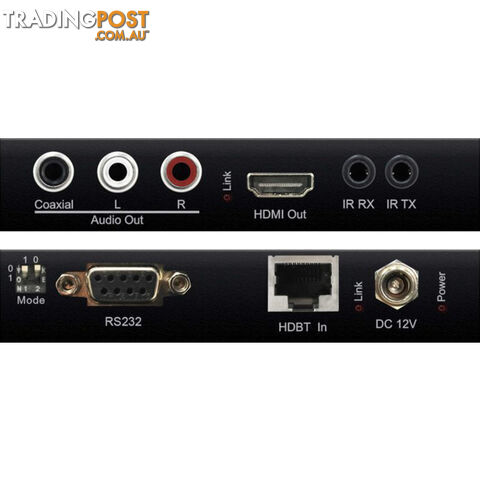

HEX100CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, EDID Management, HDMI Loop-Out, Audio Breakout, Bi-directional PoH (PoE), HDCP2.2     DESCRIPTION Our HEX100CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 100m (4K to 70m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analogue stereo and digital coax audio breakout. KEY FEATURES Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out. Supports 4K 60Hz 4:4:4 UHD video up to 70m Extends HDMI 1080p video up to 100m Features 1x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions HDMI re-clocking on the HDBaseT™ Receiver tohelp solve HDMI HDCP, compatibility and handshaking issues HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently Supports bi-directional RS-232 pass through Supports bi-directional IR pass through Supplied with Blustream 5V IR receiver and emitter Advanced EDID management HDCP2.2 compliant SPECIFICATIONS HEX100CS-TX transmitter Video Input Connectors: 1x HDMI Type A, female Video Output Connectors: 1x HDBaseT™RJ45 connector, 1x HDMI Type A, female RS-232 serial port: 1x DB-9 female IR Input ports: 1x 3.5mm stereo jack IR Output ports: 1x 3.5mm mono jack EDID DIP switch: 4-pin HEX100CS-RX receiver Video Input Connectors: 1x HDBaseT™ RJ45 connector Video Output Connectors: 1x HDMI Type A, female RS-232 serial port: 1x DB-9 female IR Input ports: 1x 3.5mm stereo jack IR Output ports: 1x 3.5mm mono jack Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right) Power Supply: 12V / 2A DC, screw type connector Power Consumption: 12.7W Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections) Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (withconnections) Receiver Dimensions (WxDxH): 113 x 124 x 22mm (withoutconnections) Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections) Ind. Extender Weight: 0.35kg (excluding accessories) Carton / Box Dimensions (WxDxH): TBCmm Shipping Weight: 1.4kg Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Mounting kits included BOX CONTENTS 1x HEX100CS-TX 1x HEX100CS-RX 2x Mounting brackets 1x 12V / 2A power supply 1x IR emitter 1x IR receiver 1x Quick Reference Guide Â
