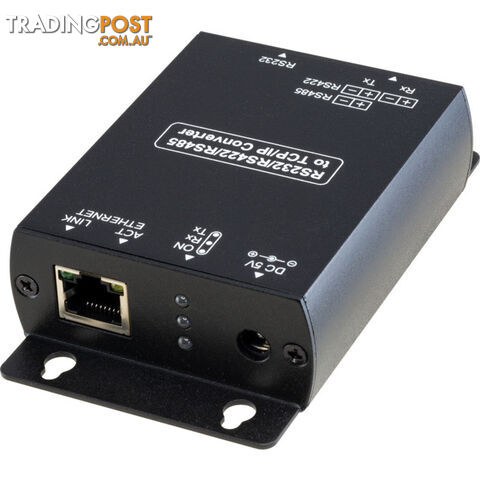

RS007 RS232 RS485 RS422 TO TCP IP BI-DIRECTIONAL CONVERTER

RS232/RS422/RS485 and Ethernet TCP/IP converter RS007 is a universal data converter that supports serial signal RS232, RS422, and RS485 to the TCP / IP protocol bi-directionally and makes the RS232 based devices accessible via the network.  TCP server, TCP client, and UDP modes offer more flexibilities of the converter. Easily set up the device via the WebGUI or the PC software supplied to create the virtual COM ports or DHCP server or TFTP server.  FEATURES: RS232: Standard DB9 connectors RS422, RS485: Terminal Block Ethernet: RJ45 network interface, use the interface through the network line of intelligent communication converter access TCP / IP network Support Data Baud rate: 1200 ~ 115200 bps Support three operation mode: TCP Server, TCP Client, UDP Mode Support Virtual COM Port  Support full-duplex transmission Auto-detection network 10/100 Mbps Support auto MDI / MDIX Built-in LED indication  SPECIFICATION: TCP/IP Ethernet: RJ-45 Connector x 1 RS232 Interface: DB9 Male x 1  RS485/RS422 Interface: Terminal Block 4 Pin x 1 Operation Modes: TCP Server, TCP Client, UDP Mode Network: 10 / 100 Mbps Distance: Ethernet Cable 100M (Max) Data Baud Rate: 1200 ~ 115200 bps Modem Control Function: CTS, RTS, DSR, DTR, RI and DCD LED Indication: Power: Green, RX TX: Blue Red, RJ45: Green, Orange Power Adapter: DC5V 1Amp Power Consumption: 3W (Max) Operation Temperature: 0 to 70°C Storage Temperature: -20 to 85°C Humidity: up to 95% Dimension: 67 x 110 x 27mm Weight: 180g WHAT IS IN THE BOX? RS007 x 1pc DC 5V 2A power supply x 1pc Manual x 1pc CD Disc x 1pc Screws x 4 sets 3M sticker x 4pcs CD DISC Compressed file Manual PDF file How to set up virtual COM port Video not loading? Watch it over at YouTube! How to set up RS007 through WebGUI Video not loading? Watch it over at YouTube! How to set up RS007 through PC software Video not loading? Watch it over at YouTube! Weight: 0.3450 kg Barcode Number: 9328202033093
