ALTI4/W AUDAC 4" PENDANT SPEAKER 16 OHM / 100V / 30W

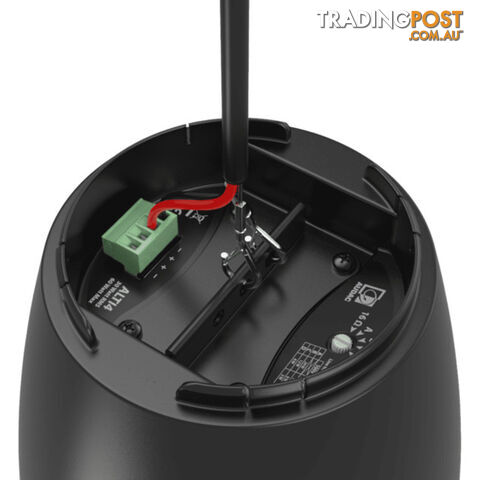

AUDAC ALTI4 2-WAY 4" PENDANT SPEAKER - WHITE The ALTI4 is a 2-way pendant loudspeaker featuring a 4” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selectorswitch for the tapping of a 70V/100V line transformer with tappings for 24W, 12W, 6W and a 16 Ohm bypass connection. Mounting the speaker is done through a connection cable with two integrated steel cores for suspending with an additional drop safety. Fixation is made through two snap-hooks on one end and a dual Gripple™ fixation on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights. An innovatively designed rear cover of the speaker can beplaced after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover.   VARIANTS ALTI4/B - Black version ALTI4/W - White version   KEY FEATURES Innovative rear cover 3.5m suspension cable with dual steel core High-quality polypropylene enclosure Rotary selector switch for tappings Wide opening angle Clear and true-to-nature audible music and speech Dual Gripple™ locking system 2-way loudspeaker construction   SYSTEM SPECIFICATIONS Max. Power 60 W RMS Power 30 W Speaker type 2-way coaxial Drivers 4” Impedance 16 ? Connectors 4-pin Euro Terminal Block Sensitivity (1W/1m) 80 dB Line Transformer Tappings 1 208 ? - 100 V / Not used - 70 V / 24 W 2 417 ? - 100 V / 24 W - 70 V / 12 W 3 833 ? - 100 V / 12 W - 70 V / 6 W 4 1667 ? - 100 V / 6 W - 70 V / 3 W Dispersion Conical 165° (average 500 Hz to 5 kHz @ -6 dB) Sound Pressure (Max. W/1m) @ 16 ? 95.1 dB Frequency Range (-10 dB) 65 Hz - 20 kHz Response (± 3 dB) 85 Hz - 20 kHz PRODUCT FEATURES Dimensions 170 x 223 mm (Ø x H) Connection cable length 3.5 m Construction Polypropylene Front finish Aluminium grill Mounting & handling Dual snap hook and dual Gripple™ hanger Weight 2.23 kg Accessories Included Connection cable with dual steel core, snap hook & open ends – 3.5 meter 2 Gripple™ hangers Â
