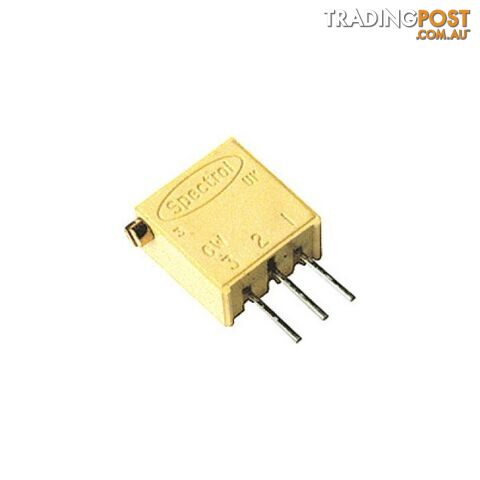

64X-10KB 10K 25 TURN TRIMPOT VERTICAL TRIM POTENTIOMETER

- 25 Turns - Vertical mounting, Horizontal adjustment - Immersion sealed - 2.54mm grid pin spacing - Max. Case Size: 10 x 5.10 x 10mm (LWH) - Sealed for board washing and potting in low viscosity material - Leak tested in water at 85°C for one minute (Specifications): - Max. Working Voltage: 300V D.C. - Resistance Law: Linear - Resistance Tolerance: 100 Ohm~500K ±10%, Others ±20% - Wattage Rating: 0.5Watt @ 70°C - Working Temp. Range: - 55°C ~ 125°C - Temp. Coefficient: ± 100 PPM/°C - Slider Current: 100mA DC - Dielectric Voltage: 900V RMS - Insulation Resistance: 1000M min. - Value: 10K Weight: 0.0010 kg
