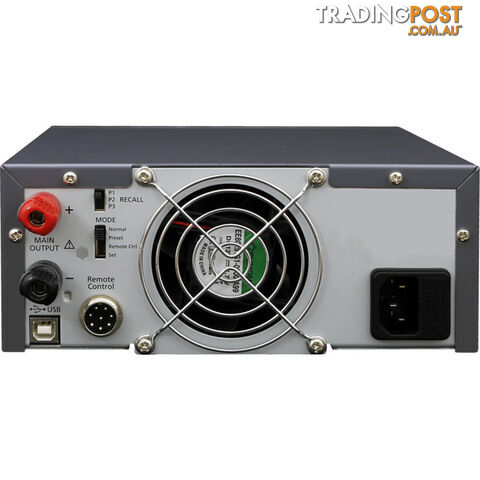

HCS3300-USB 1-16V 0-30A POWER SUPPLY SWITCHING 3 DIGI LED W/USB

FEATURES These are cost effective remote programming power supplies with lab graded performance. They are ideal for laboratory , university , work shop , production , quality control and advanced DIY . Computer interface via USB for cyclical operation , plus wired analogue remote control makethese power supplies open up many demanding applications. Fine and Coarse tuning with definitive rotary encoder volumeknob and open circuit CC setting are really user friendly. This range of high graded SMPS is designed for a wide range of applications for telecommunications, laboratory andindustry. The power efficient circuit designs allow units tohave small form factor with low profile and small footprint casings. The intelligent fan speed control program checks the fan at power on and adapts the right speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels. The dual action (coarse & fine set) control knobs make tuning the voltage and current level ever so smooth, precise and fast, due to the rotary encoder and microprocessor control. Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allow parallel and series connection of power supplies with ease and safety. The three user defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings. Analogue remote control functionality offer a wide range of operation possibilities for the industrial and more sophisticated users. We add an USB port for access to computer to run cyclical operation with programmable voltage, current, period time and cycles. FEATURES Rotary Encoder Control Knob with coarse & fine tuning PC interface USB for program runs of up to 20 sets V I ,time set , and 999 cycles. Wired analogue remote controls of on off , V, and I High RFI immunity & excellent EMI Intelligent fan control from zero to full speed 3 user presets on unit Open circuit Constant current limit Isolated ground and active PFC & high power efficiency Over load, Over Temperature & Tracking Over Voltage protections Remote Programmable via USB to computer Application software , command sets and Labview driver. Output Voltage: 1-16V Output Current: 0-30A SPECIFICATIONS Models HCS-3300-USB Output Variable Output Voltage 1-16VDC Variable Output Current 0-30A Voltage Regulation Load (10-100% Load) ≤50mV Line (170-264VAC Variation) ≤20mV Current Regulation Load(10-90% Rated Voltage) ≤150mA Line(170-264VAC Variation ≤50mA Ripple & Noise Ripple & Noise (r.m.s) Voltage ≤5mV Ripple & Noise (peak-peak) Voltage≤50mV Switching Frequency 65-58KHz~ Tracking Over Voltage Protections O/P 1-5V: set voltage 2V O/P 5-16V: set voltage 3V Meter Type & Accuracy Voltage Meter 3 Digit LED Display ±(0.2% 3counts) Current Meter 3 Digit LED Display ±(0.2% 3counts) Input Voltage 200-240VAC 50-60Hz Full Load Input Current 2.4A Efficiency ≥85.5% Power Factor Control Power factor correction >0.95 at optimal load Cooling Method Thermostatic Control Fan from Zero to full speed Protections Overload, Short Circuit by Constant Current, Output Tracking Over Voltage, Over Temperature Special Features 3 User defined V & I preset, Analogue Remote control V,Iand output on-off Preset Cycle Programming Max. 20 presets of V&I; Max. preset cycle 999 Approvals CE EMC: EN 55011, 55022 LVD: EN 60950, 61010 Dimensions(WxHxD) 200x90x215mm Weight 2.6 kg VIDEOS Using the HCS Series Power Supplies with Raspberry Pi Loading the driver Controlling via Raspberry Pi DOWNLOADS User Manual HCS-3300-USB User Manual pdf; 1.31MB Weight: 3.50 kg Barcode Number: 9328202033345
