HEX11WPRX HDMI WALL PLATE HDBASET RX RS-232 AND IR UPTO 70M (4K- 40M)

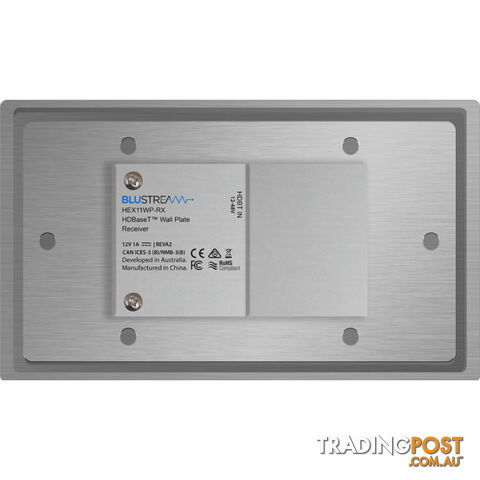

BLUSTREAM - HEX11WP-RX HDMI WALL PLATE HDBASET™ RECEIVER - HDMI, RS-232 AND IR UP TO 70M (4K UP TO 40M) Blustreams HEX11WP-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products. KEY FEATURES Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) Extends HDMI at 1080p up to a distance of 70m Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission Supports CEC and RS-232 pass through Supports bi-directional IR pass-through to compatibleHDBaseT™ device Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products Compatible with all Blustream HDBaseT™ transmitter / matrix products* Magnetic faceplate surround allowing both UK & EUbackbox compatibility HDCP 2.2 support *Technical performance is subject to the featuressupported on the connected HDBaseT™ device. SPECIFICATIONS Video Input Connectors: 1 x HDBaseT™ RJ45 connector Video Output Connectors: 1 x HDMI Type A, 19-pin, female RS-232 Serial Port: 1 x 3-pin phoenix connector IR Input Ports: 1 x 3.5mm stereo jack IR Output Ports: 1 x 3.5mm mono jack Local Power Input: 1 x 2-pin phoenix connector Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate) Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm Backbox Mounting Depth: 40mm (minimum) - backbox not supplied Shipping Weight: 0.7kg Operating Temperature: 32°F to 104°F (-5°C to 55°C) Storage Temperature: -4°F to 140°F (-25°Cto 70°C) Power Supply: 12V/1A DC   BOX CONTENTS 1 x HEX11WP-RX 1 x 12V/1A DC Power Supply 1 x Magnetic Faceplate 1 x Quick Reference Guide     HEX11-WPRX Data sheet PDF file HEX11-WPRX Quick reference guide PDF file Weight: 0.8760 kg Barcode Number: 9340242003560
