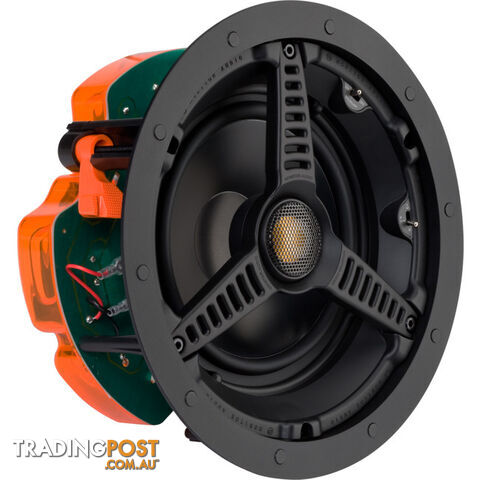

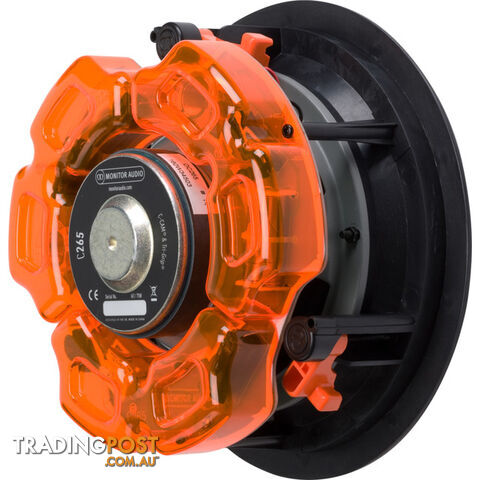

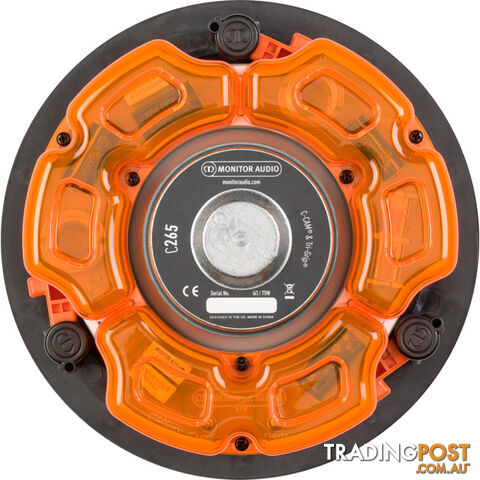

C265 6.5" 2-WAY IN-CEILING SPEAKER C-CAM BASS - C-CAM TWEETER

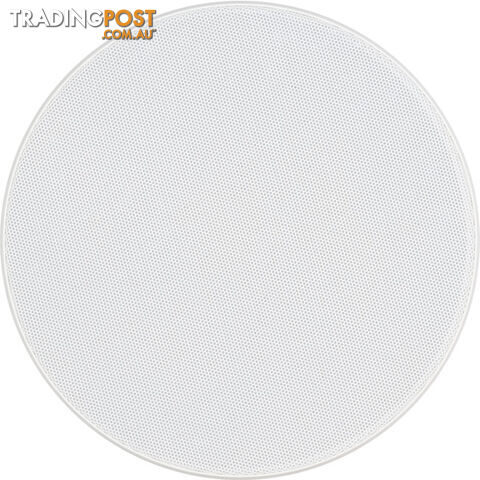

C265- 6.5" 2 WAY IN-CEILING SPEAKER A 61/2 inchC-CAMbass driver and a more highly specified version of the C-CAMGold Dome tweeteroffer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models. Optimum imaging and set-up are established via a pivotingtweeter, high frequency ( 3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls. Optionalsquareorpremium grillecan be used with this model. TECHNOLOGY C-CAM bass and C-CAM gold dome tweeters Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation Gold plated push terminals HF Level Switch ( 3 dB / 0 dB / -3 dB) On/Off Boundary compensation   SPECIFICATIONS Frequency response 60 Hz – 25 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 88.5 db Maximum SPL 108 dBA Power Handling (RMS) 75 Watt Recommended Amplifier Requirements 20-75 Watts Drive Unit Complement 6 1/2"C-CAMcone bass driver 1” C-CAM pivotingGold Dome tweeter Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) Boundary Compensation Switch Overall Diameter (Including Grille) 250 mm (913/16") Mounting Depth 116 mm (49/16") Cut-Out Hole Diameter 211 mm (81/4") Fixing Type 3 positionTri-Gripdog fixings Connection Gold plated ‘push’ type terminals Optional Square Grille - Outer Dimensions 249 x 249 mm(93/16") Construction Material Mineral filled ABS, RoHS compliant Weight 2.04 kg (4 lb 8 oz) Pre- Construction bracket CB6Pre-Construction Bracket(Purple) Back Box CCBOX-R/CMBOX-R Custom product install guide PDF file CI overview PDF file Weight: 2.96 kg Barcode Number: 5060028971497
