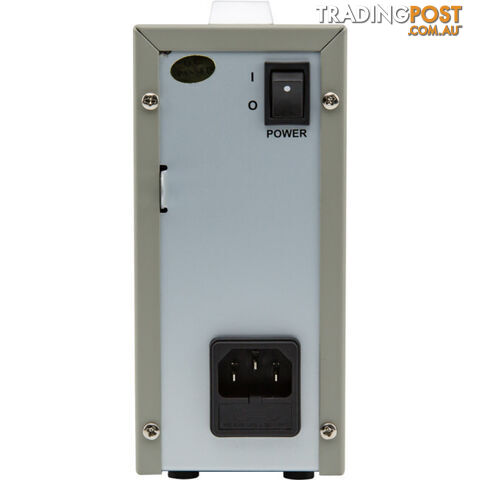

NSP2050 1-20VDC 5A SLIM MULTI-VOLTAGE SWITCHMODE POWER SUPPLY LCD

FEATURES This series of 100W Switching Mode Power Supplies with Current Limiting Control is designed with the objectives of high accuracy, compactness and easy portability. 4 digit display LCD of voltage and current for high precision. The slim tower housing makes it ideal for tight work bench. It is light and conviently portable and a collapsible handle. The large and illuminated LCD display provides clear and sharp radings even under dim light. The output power on-off switch allows safe and handy operations. The Tracking OVP (output over voltage protection) ensures a better and tighter protection to voltage sensitive loads. It has good line and load regulations, high efficiency and low ripple and nose that are tyical of advanced switching mode power supply. It meets the CE safety standards EN-61010 for laboratory grade power supply and respective EMC standards. Features Automatic Cross over CV and CC mode Illuminated LCD indications of A, V, Output On-Off,CC and CV 4 digit displays of Volt and Amp meters Voltage and Current Controls Compact slim tower housing with collapsible handle Output power on off switch at front panel Natural Convection Tracking OVP(output over voltage protection), ShortCircuit, overload and over temperature protections Good line, load regulations and low ruppple and noise Rotary encoder control CE approvals SPECIFICATIONS Specifications Input Voltage...200-240VAC, 50/60Hz~ Full Load Input Current at 230VAC...0.83A Output Voltage Adjustable Range...1-20VDC Output Current Adjustable Range...0-5A Voltage Regulation Load from 10% to 100% Variation...50mV Line from 180 to 264VAC Variation...20mV Ripple and Noise in r.m.s....5mV Ripple and Noise (peak to peak)...30mV Current Regulation Load from 10% to 100% Variation...20mA Line from 180 to 264VAC Variation...20mA Ripple and Noise (peak to peak)...20mA Switching Operation Frequency...80KHz to 120KHz Power Factor...0.68 Efficiency at Maximum Power...84% Display...4 Digit Volt. Meter Accuracy...±1% 5 counts for range V =5V .....................................±1% 3 counts for range V >5V Curr. Meter Accuracy...±1% 5 counts for range V =2A .....................................±1% 3 counts for range V >2A LCD Indication...C.C., C.V. , Amp, Volt, output on/off Protection...Short Circuit, Overload, Over Tempertature, Tracking OVP Approvals...CE EMC:EN55011 LVD:EN61010 Cooling System...Natural Convection Dimensions (WxHxD) 70x150x250mm 2.8x6x9 inch Weight...Approx 2kgs 4.4lbsIncludes IEC mains cable, test leads (safety plugs to alligator clips) and instruction manual VIDEOS NSP-xxxx Output On/Off Function Some novice users may find this feature confusing, assuming that when the device is powered then there is always output, or that this button turns the unit on or off.This video seeks to explain this feature. Using the 3-stage adjustment knobs Setting the Current and Voltage Weight: 2.50 kg Barcode Number: 9328202033260
