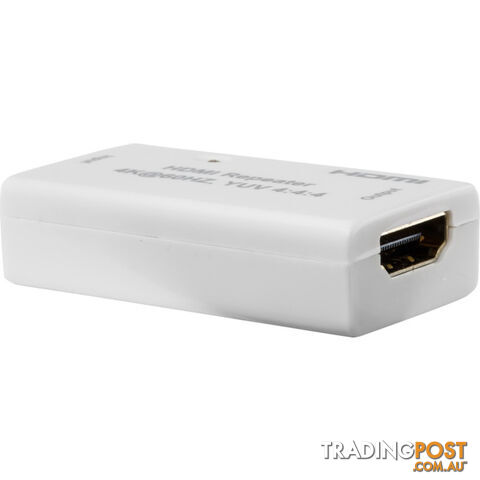

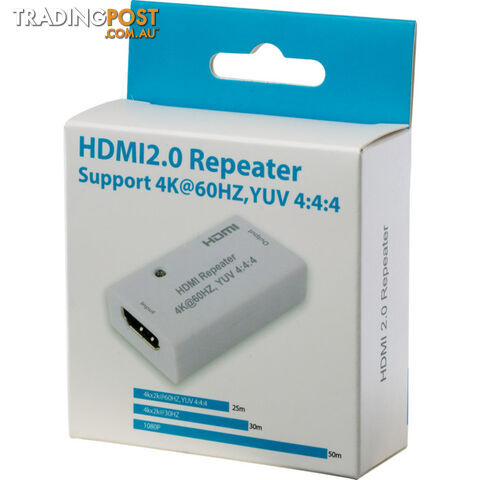

HR04 HDMI2.0 4K2K REPEATER YUV/RGB 4 4 4 HDMI REPEATER

FEATURES
Bandwidth upto 18Gbps, Resolution upto 4Kx2K @ 60Hz, YUV4:4:4
Transmitter upto 25m under 4K@60Hz, 30m under 4K@30Hz
Supports 3D
CEC Pass Through
HDCP2.2/1.4 Compliant
Compact size
Power consumption is less than 1W
No power supply needed
SPECIFICATIONS
Operating Temperature Range -5 to 35°C ( 23 to 95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data Transfer Speed Rate 18Gbps(Max)
Supported Video Format DTV/HDTV:
480i/576i/480p/576p/720p/1080i/1080p
4Kx2K@60Hz/YUV 4:4:4
3D video supported
Video Output HDMI
Supported Video Colour Format xv-YCC/deep colour 36bit
Supported Audio Format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Power Consumption 1W (Max)
Dimension

49.2(L) x 27(W) x 13.2(H)mm


Net Weight 0.01g

Weight: 0.0320 kg
Barcode Number: 9328202020024
