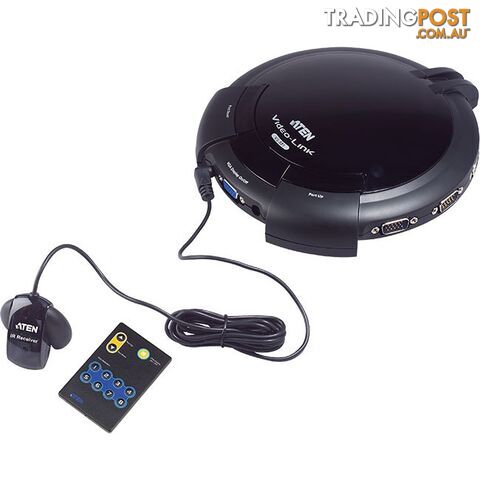

VS881 8 PORT VIDEO SWITCH WITH IR REMOTE CONTROL

The VS881 is a video switch with 8 ports. It allows 8independent computers or notebook computers to display theirvideo outputs on a single monitor or on the screen via a multimedia projector. It provides a best solution of presentations and speeches to enterprises and education centers.
FEATURE
Displays the video output of eight separate computers on a single monitor or projector.
New modern concentric design with logical connector layout for quick and easy access.
Fast and convenient computer selection via push buttons or infrared (IR) remote control.
External IR receiver (1.8m) for maximum efficiency and convenience.
Extra-thin IR handset allows easy storage in the mother unit.
High resolution video - up to 2048 x 1536
Long distance transmission - up to 10m
DDC, DDC2,DDC2B Compatible
Supports VGA, SVGA, XGA, UXGA and Multisync monitors.

SPECIFICATIONS
Computer Connections 8
Port Selection Pushbutton, IR Remote Control
Connectors Video In 8 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
IR 1 x Mini Stereo Jack Female (Black)
Power 1 x AC Jack (Black)
Switches Port (Up) 1 x Pushbutton
Port (Down) 1 x Pushbutton
VGA Display
On/Off 1 x Pushbutton
LEDs On Line/Selected 8 (Orange/Green)
VGA Display
On/Off 1 (Blue)
IR Sensor 1
Video 2048 x 1536 @ 60Hz
Power Consumption AC9V, 4.5W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 0.45 kg
Dimensions
( L x W x H ) 17.00 x 19.00 x 4.50 cm

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

Package Contents
1x 8-Port Video Switch
1x IR Remote Control Unit
1x Infrared Receiver
1x VGA Cable (1.2 m)
1x Power Adapter
1x User Manual
1x Quick Start Guide
