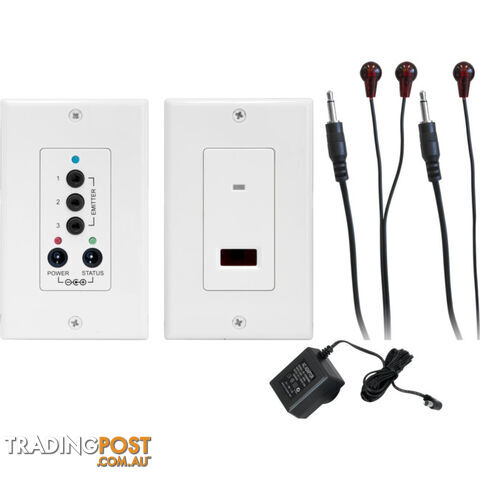

PRO1255 PRO2 IR REPEATER WALL PLATES KIT

DESCRIPTION The PRO1255 IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/Video components. With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard signle gang electrical box using deco cover plates. In-wall IR Connecting Block Three emitter output connections Convenient IR confirmation LED Status power connector with LED indicator Power input connector with LED indicator Large detachable IR receiver connection at back Specifications: Dimensions: 70 (W) x 114 (H) x 40 (D) mm Weight: 56gr In-wall IR Receiver Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room. Dual colour LED (Green for system status/ Blue for talk back) Ultra-thin design mounts to any J-box or P-ring Wide band IR receives signals from many types of remotes Specifications: Receive frequency range: 34 KHz to 40 KHz Transmit frequency: 38 KHz Range: On axis: 16.8m to 24.4m 30° off axis: 9.1m to 16.8m Power: 12 V DC, 30mA max. Status Power: 12 V DC, 3mA max. Dimensions: 70 (W) x 114 (H) x 16 (D) mm Weight: 36gr Kit includes: In-wall IR Connecting Block In-wall IR receiver Dual IR emitter Single IR emitter Switch mode power supply FAQ Q: Can I add extra IR receiver in other room? How many and how? A: Yes, you can add 2 extra receivers in the system, total up to 3 IR receivers are suggested for the system, thewiring diagram is on page 4 of the manual. DOWNLOADS Pro 1255 User manual PDF file Weight: 0.3170 kg Barcode Number: 9328202007681
