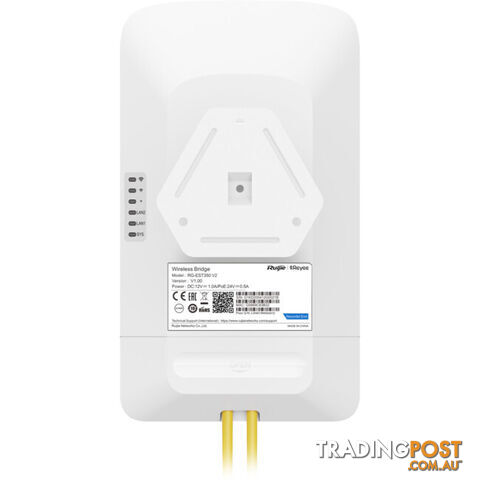

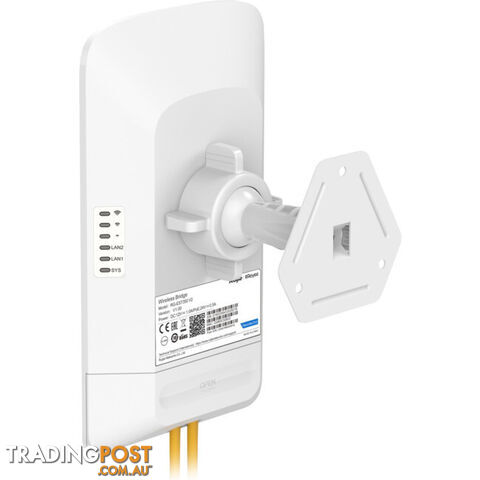

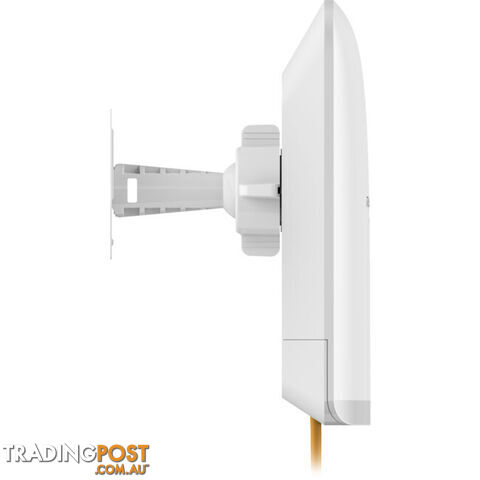

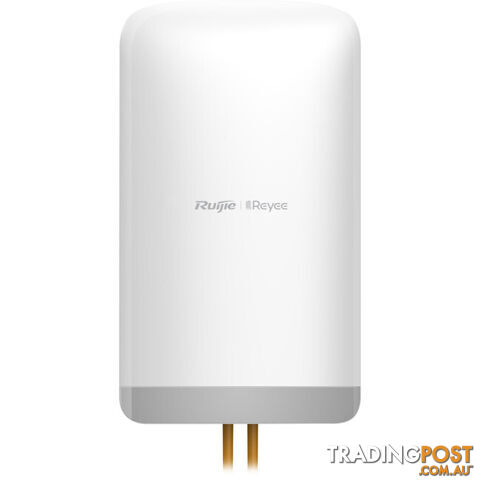

EST350V2 5GHZ DUAL-STREAM 802.11AC 5KM WIRELESS BRIDGE

FEATURES 5GHZ, 15DBI POINT-TO-POINT, 867MPS WIRELESS BRIDGE, PAIR PACK RG-EST350 is a High Durability, High Speed, High Capacity, Long Range (up to 5KM) Dual Stream (paired) MU-MIMO POE Wireless Bridge. FEATURES: 5GHz Dual-stream chip 867Mbps (Max) wireless transmit rate. Paired by default and can be used without requiring any configurations. One Click Set-Up & Management via the free Ruijie Cloud App. Reduce/Eliminate site visits. 15dBi Internal Directional Antenna Supports MU-MIMO (Multi-user MIMO) 2X2 Maximum loading/support. (45 2MP cameras loading at 3KM, 20 2MP cameras loading at 5KM) PTMP Supported Bridging (ie. 1 recorder, multiple cameras). High Durability: IP54 rating provides dust, water and heat protection for outdoor environments. (V-0 Flame-retardant Material ) POE/Power Supply Redundancy Support (12v and/or 24v) Utilizing the new high-performance single-band dual-stream 5GHz chip, the RG-EST350 provides up to 5Km in range and 867Mbps secure, wireless 2×2 MU-MIMO transmission rates and significantly enhances the efficiency, stability and range of the network bridge. The RG-EST350 includes 2 devices paired by default and can be deployed without any pre-configuration via the Ruijie Cloud App, which also provides critical features such as viewing the network topology, network user access, fault alarms and configuration modifications, significantly decreasing the amount of site visits required. With Dual Power POE Support this unit provides power redundancy options in case of power failure and the IP54 weather-resistant materials ensure the device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high durability while significantly reducing installation and maintenance costs. MODEL COMPARISON YesYes 4 kV4kV RG-EST350 V2 RG-EST310 V2 Wi-Fi Standards Wi-Fi 5 (IEEE 802.11ac, Wave2) Wi-Fi 5 (IEEE 802.11ac, Wave2) Operating Band 802.11a/n/ac: 5.150~5 .350GHz, 5.470~5.725GHz , 5.725~5 .850GHz (country speci?c) 802.11a/n/ac: 5.150~5 .350GHz, 5.470~5.725GHz , 5.725~5 .850GHz (country speci?c) MIMO 2x2, MU-MIMO 2x2, MU-MIMO Max. Wireless Speed 5 GHz: 867Mbps 5 GHz: 867Mbps Antenna Gain Directional, 15 dBi Directional, 15 dBi Polarization Horizontal: 31°, Vertical: 14° Horizontal: 31°, Vertical: 14° Recommended Distance 5 KM 5 KM Fixed Ports 2 x 10/100/1000Base-T 2 x 10/100/1000Base-T Memory/Flash 512 MB/8 MB 512 MB/8 MB Weatherproof IP54 IP54 Transmit Power ≤400 mW(26 dBm) (adjustable) ≤400 mW(26 dBm) (adjustable) Automatic Pairing Yes Point-to-Multipoint 1:03 1:05 Management EWeb/Cloud/APP EWeb/Cloud/APP Automatic Restart Yes Yes Lightning Protection 4 kV Power Supply 12 VDC / 24V Passive PoE 12 VDC / 24V Passive PoE Power Consumption 400,000H > 400,000H Certifications CE, RoHS CE, RoHS Warranty 3 Years 3 Years DOWNLOADS Datasheet Quick Installation Guide VIDEO Introduction Video not loading? Watch it over at YouTube! Weight: 2.40 kg Barcode Number: 6971693272286
