ELISA100 RCF IN WALL / CEILING 2WAY 100V - 4 OHM SPEAKER

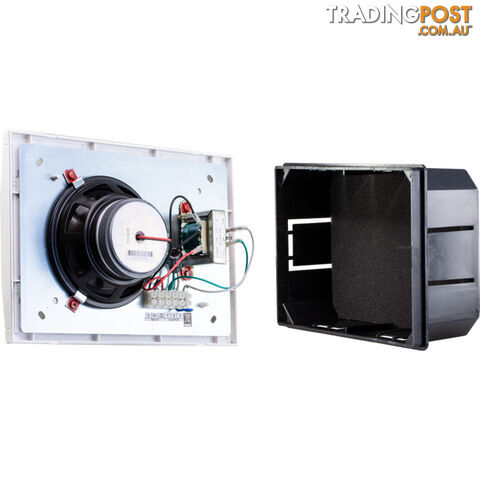

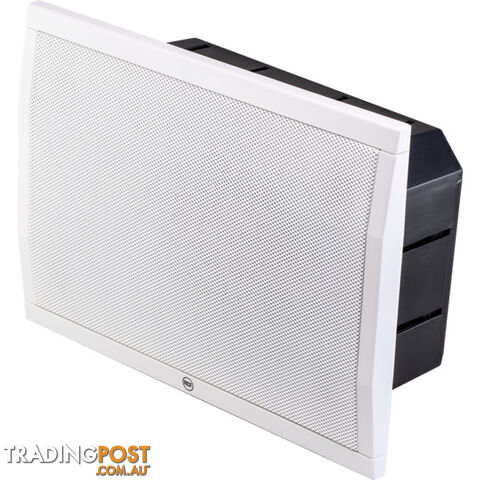

RCF ELISA 100 IN WALL 70 / 100V - 4 OHM SPEAKER Superior quality speaker with attractive, contemporary design and quick, easy installation. The E.L.I.S.A. 100 can be used in smaller spaces when used individually, or in larger environments when several speakers are used together. Quick and easy installation thanks to magnetic cover-plate hooking. Features: For high quality paging and background music Music power/RMS: 20/10W (30/15W for use without transformer, 4ohm) 4" coaxial speaker, main cone in carbon fi bre, tweeter with 1" diaphragm Equipped with multi-tapped transformer for 100/70/25V constant voltage connection Flush mount box with soundproof material included Front frame in ABS and metal grille RAL 9003 White ACOUSTICAL SPECIFICATIONS: Type of speaker: Wall speaker with transformer Frequency Response: 100 Hz 20 kHz Max SPL @ 1m: 104 dB Horizontal coverage angle: 140° Power Handling: 10 W RMS Peak Power Handling: 20 W PEAK System Sensitivity: 91 dB Impedance: 4 ohm TRANSDUCERS: Speaker: 4.7" Tweeter: 1" INPUT SECTION: Input connector: 2 conductor cable Faston terminated Constant voltage: 100 V , 70 V , 25 V Power Selection: 10 - 5 W (100V) Cabinet: Hardware: Body in plastic Colour: White Grille: Metal PHYSICAL SPECIFICATIONS: H eight: 185 / 7.28 mm/inch Width: 260 / 10.23 mm/inch Depth: 55 / 2.16 mm/inch Net weight: 1.46 / 3.21 kg/lbs
