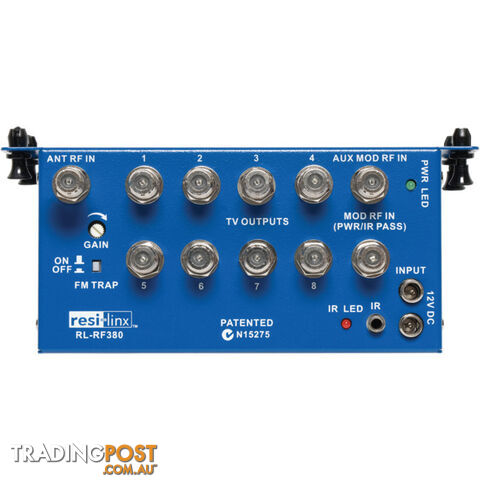

RLRF380 3 IN 8 OUT COMBINER/AMPLIFIER SPLITTER WITH IR REMOTE RETURN

FEATURES RL-RF380 - 3 INPUT / 8 OUTPUT RF DISTRIBUTION MODULE The RL-RF380's patented design is for whole-house videodistribution with IR control. The splitters have reverse path IR control, that when combined with other products inthe IR range, will allow you to control the AV inputs from other locations. The RL-RF380 must be remotely powered by anIR Modulator when using the IR Control. Inputs: 3 Outputs: 8 Output Run Distance: 60m IR Control: Yes Patented Must be remotely powered by an IR Modulator when using the IR Control FEATURES Active, low loss combiner and splitter with 3 inputs, 8 outputs Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.  When combined with gain control on modulator, allowscomplete balancing of signals FM trap On/Off switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception SPECIFICATIONS Output Frequency Pass: 30KHz to 850MHz Number of output: 8 Number of input (Modulator / ANT): 3 Gain / Loss ANT: 2dB Modulator: 3dB  Output run distance: 60 metres Isolation (Modulator inputs to ANT): -80dB Weight (g): 405 Size (mm): 135 (l) x 69 (w) x 22 (d) Power supply Input: 110 - 240V AC Output: 12V DC - 1.5A Switch Mode Connections - Power Out 1.8mm length with 2.1mm minijack socket DOWNLOADS RLRF380 Installation Guide PDF file RLRF380 Installation Manual PDF file Weight: 0.7020 kg Barcode Number: 9328202020307
