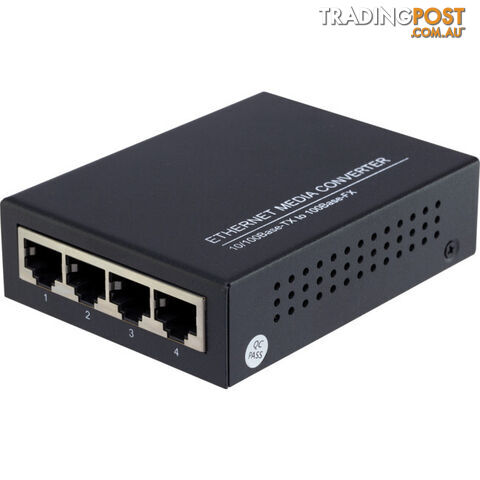

4P100SM20KSC 4 PORT 100M FIBRE MEDIA CONVERTER 10/100M SM DUAL FIBRE SC 20KM

4P100SM20KSC is a Fast Ethernet Media Converter, extends the 10/100Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100Mbps auto negotiation RJ45 connector and 1-port 155Mbps full-duplex on the fiber port with SC interface. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios. FEATURES 4-port 10/100M auto-negotiation RJ45 with auto-MDI/MDI-X Fiber port: Single mode SC Full duplex and Half duplex operation with IEEE 802.3x flow control Support broadcast filtering, MAC address automatic learning and updating Support QoS, VoIP packet transparent trans 2048bytes maximum packet length LED indicators for working status Support hot plug and play -20~60 C working temperature ESD, surge protection IP30 enclosure Wall-mounted Installation with optional kits Low power consumption, lead-free process CE/FCC/ROHS compliance SPECIFICATIONS Performance Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Data forwarding Store and Forward Switch capacity 1Gbps Packet forwarding Rate 0.744Mpps MAC address 2k Buffer Space 512Kbit Flow Control support Max. Packet Length 2048bytes Interface Copper Port 4x 10/100M Auto-negotiation, RJ45 auto-MDI/MDI-X Cat5/Cat5e/Cat6, ≤100m Fiber Port 155M SC Single Mode OS1/OS2 ≤120km; OM1/OM2 ≤2km LED indicators Status PWR, Fiber Link/Act, Copper Link/Act Electrical characteristics Input Voltage 5Vdc Power Consumption
