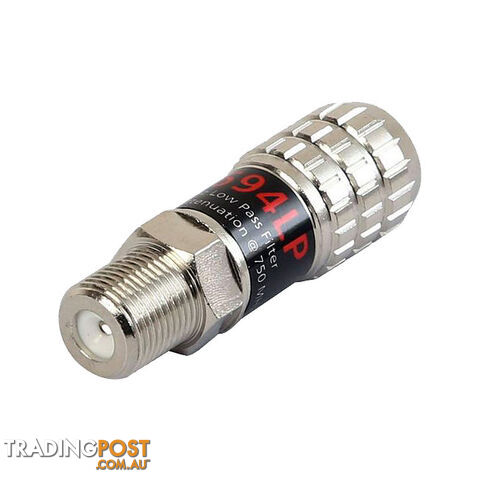

FL694LP 55DB 4G INTERFERENCE FILTER LTE KINGRAY ( LP-LTE25 )

OVERVIEW KINGRAY FL694LP 55DB LTE FILTER Kingray are proud to announce the release of the Kingray FL694LP 55dB LTE Filter low pass filter. Features include a super compact housing and exceptional LTE rejection. The filter passes all frequencies between 5-694MHz, all frequencies above 694MHz (Aust channel 51 / NZ channel 48) are attenuated, at 750MHz the filters attenuation is 55dB. The filter is designed to be installed after the antenna and before any amplifier or splitter in the system. If the filter is required to be installed outdoors it is recommended it be installed inside either a Kingray MHB001 weatherproof housing. It's also small enough to fit into many Kingray masthead amplifiers such as: - Wideband: MHW25FE, MHW25F, MHW35F - UHF: MHU25F, MHU35F SPECIFICATIONS Insertion Loss: 55dB @750MHz Input & Output connectors: F Type Dimensions: 13 x 39 mm   Weight: 0.0340 kg Barcode Number: 9319493253444
