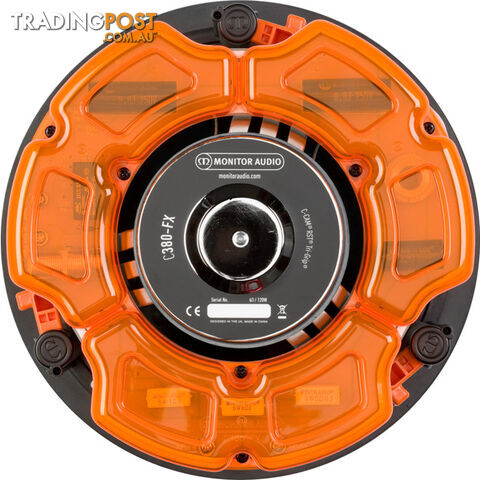

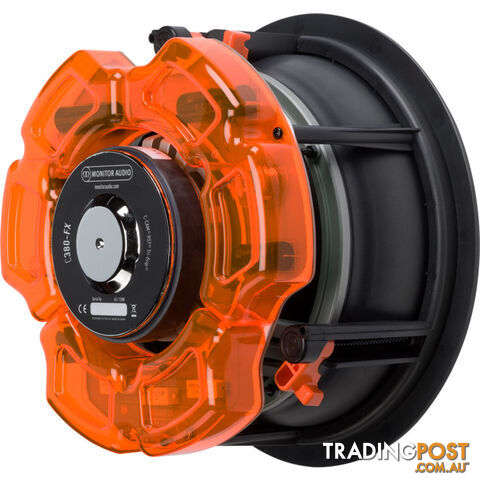

C380FX 8" DIPOLE / BIPOLE FX SPEAKER CCAM BASS ANDDUAL CCAM TWEETERS

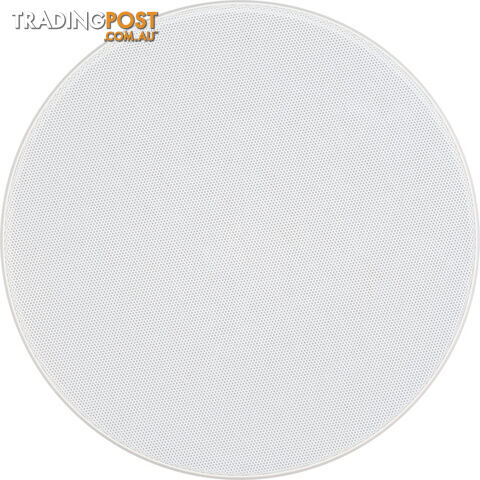

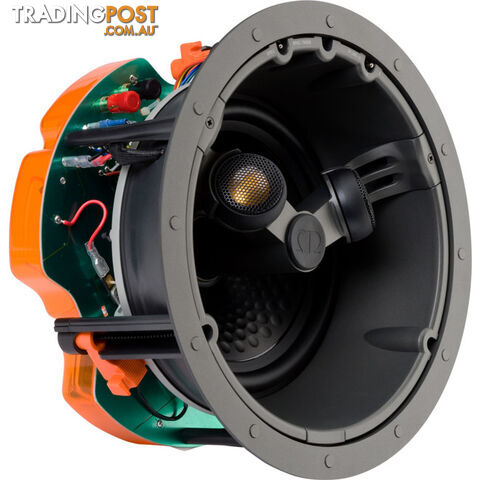

C380-FX- 2 WAY IN-CEILING SPEAKER Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreethome theatre sound. Incorporates an 8-inchC-CAMRSTbass driver and dual 1-inch C-CAMGold Dome tweetersmounted at aprecise fixed-angle for optimised performance. Optionalsquare grillecan be usedwith this model. Key Features Gold C-CAM Tweeter C-CAM Drivers 2-Way Design Mode Switch Paintable Grille 8" Driver SPECIFICATIONS   Frequency response 45 Hz – 30 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 90 db Maximum SPL 111.6dBA Power Handling (RMS) 120 Watt Recommended Amplifier Requirements 30-120 Watts Drive Unit Complement 8" C-CAMcone bass driver featuring RST 2 x 1" C-CAMfixed angleGold Dome tweeters Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) Bipole / Dipole Switch with Additional 12v Trigger Switching Overall Diameter (Including Grille) 285 mm (111/4") Mounting Depth 157 mm (63/16") Cut-Out Hole Diameter 247 mm (93/4") Fixing Type 3 positionTri-Gripdog fixings Connection Gold plated ‘push’ type terminals Grille attachment Magnetic - (optional square grille- outer dimmensions 285 x 285 mm (111/4")) Construction Material Mineral filled ABS, RoHS compliant Weight 3.2 kg (7 lb)) Pre- Construction bracket CB8Pre-Construction Bracket (Green) Back Box CMBOX-R Custom product install guide PDF file CI overview PDF file Weight: 4.32 kg Barcode Number: 5060028971589
