TX3120SPNP TX3120S PLUG "N" PLAY KIT GME

OVERVIEW

TX3120SPNP PLUG'N PLAY UHF RADIO KIT
PLUG'N PLAY UHF RADIO KIT Introducing the latest generation of portable UHF CB communication ? TX3120S Plug ‘N’ Play. This pack is easily installed into any vehicle within minutes and does not require any drilling, cutting or soldering. Aimed at the casual user TX3120S Plug ‘N’ Play is perfect for any convoy journey or rental vehicle. Designed and engineered in Australia TX3120S incorporates the widest LCD in its class size, twin rotary controls, speaker microphone and ScanSuite - GMEs latest scanning technology to enable uninterrupted conversations. When no longer required, all accessories pack away intothe travel case supplied, ready for the next adventure.

FEATURES

ScanSuite Dynamic Volume Control Selectable priority channel Voice inversion scrambler Memory channel quick select CTCSS & DCS Advanced signal management Full spectrum backlighting Active channel transmit in scan Digital signal processing Open and group scan mode 5 year warranty

SPECIFICATIONS

GENERAL Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425-477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode Simplex channels 1-80, Semi Duplex channels 1-8, 41-48 Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 13.8 volts DC Operating Voltage Range 10-15 volts DC Overvoltage Protection 25 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash. Overcurrent Protection In-line 2A Fuse Frequency stability ±2.5 PPM TRANSMITTER RF Output 5.0 watts max Spurious Emission 45 dB Current consumption

IN THE BOX

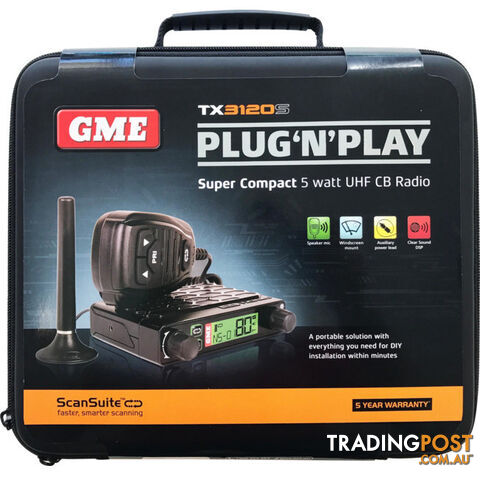

TX3120S Super compact UHF CB radio Compact Magnetic Antenna Windscreen Suction Mount 12V DC Auxiliary Power Lead Speaker Microphone Convenient Travel Case Mounting Accessories Pack Instruction manual



Weight: 0.9840 kg
Barcode Number: 9319493261180
