PA40M 40W DC12V CLASS D AMPLIFIER MP3 SIREN 2XMIC AUX IN SHOW

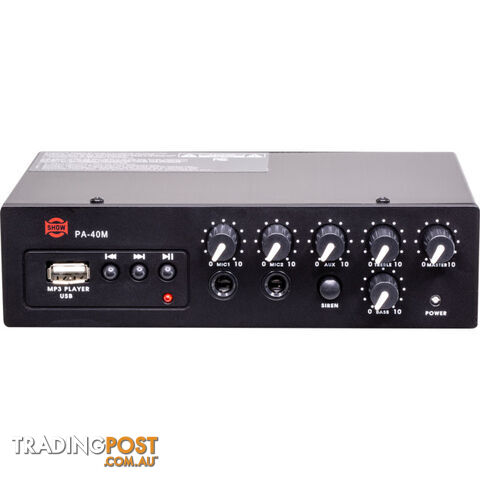

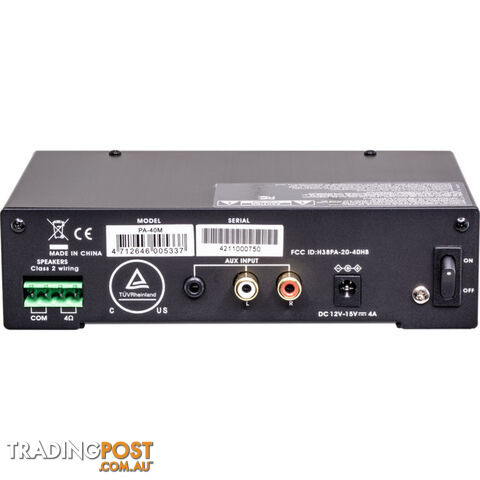

The PA-40M is a very compact amplifier specifically designed for small hotels and supermarkets, or mobile applications. Its small size and light weight make easy integration in little space. The 12V DC operation perfectly fits for portable use or installations where a direct AC power supply is unavailable. They are the ideal solutions for zoning, information points, ticketing counters, and vehicles using a rooftop speaker system. PA40M features an MP3 player with a UBS port, plus a siren triggered with a push button from the front panel. 2 Mic inputs are available with TRS 6.35mm jacks, plus 1 Aux stereo input on the rear panel with RCA connectors. All volume controls are on the front panel and include a simple EQ setting. The output section uses euro block connectors and features a 4Ω load.

FEATURES:
Output: RMS 40W
2 Aux (RCA and 3.5mm jack) inputs
Treble and bass adjustments
Input volume adjustment and master output volume adjustment
2 Microphone (6.3mm) inputs
MP3 module with USB interface
Impedance output: 4Ω
Power supply: DC 12V-15V 4A
Master adjustments
Siren switch
Under-table/Wall mount plate supplied
SPECIFICATIONS
Power supply: DC 12~15V, 4A
Rated output power RMS: 40W
Max Rated Power Consumption: 60W
Rated impedance output: 4Ω
Frequency response: 100Hz - 18K Hz (± 3dB)
S/N Ratio > 65dBu
THD 1%, -37dBu ± 2dB (MIC1~MIC2)
Input Sensitivity: (1 kHz): -11dBu ± 2dB (AUX)
Noise or Hum: 25mV
MP3: USB
Impedance output: 4Ω
Dimension: (W x D x H)161 x 101 x 45 mm
Weight:  0.73 kg
