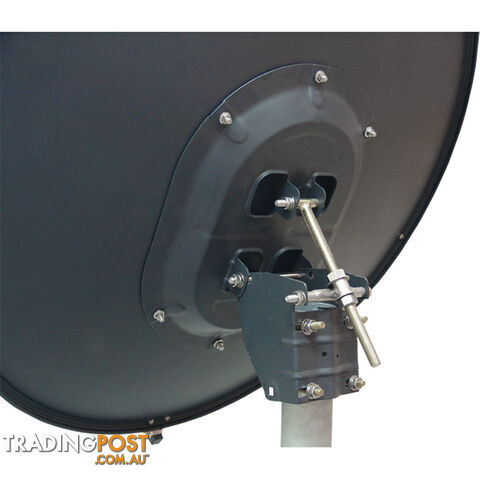

SDJ90C1 90CM OFFSET SATELLITE DISH FOXTEL APPROVED F10096

90CM OFFSET SATELLITE DISH Satellite dish with tri arm design. Type: Offset Diameter: 90cm horizontal Material: Galvanised steel with powder coat finish Colour: Dark grey Best suited for commercial installations. The polyester based powder coating is designed for the exterior environment, salt spray, light, colour retention and is alsoweather resistant. SPECIFICATIONS Specifications SDJ90C1 Reflector Type Offset Offset Angle 24.62 Aperture (Diameter) Horizontal Axis:90 cm Vertical Axis:99cm Efficiency 75 % Min Ku-Band Gain @ 12.50 GHz 39.82 dBi F/D Ratio 1.6 Focus Length 541 mm Material Galvanised Steel Finish Polyester Powder Coating Colour Dark Grey Mounting Mounting Type Pole, Wall & Ground Mount Adjustment Type AZ/EL Material Steel / Galvanised Steel Finish Polyester Powder Coating Colour Dark Grey Elevation 15 - 90 degrees Azimuth 0 - 360 degrees Pole Diameter 42 - 60 mm Environment Ambient Temperature - 40 C ? 60 C Relative Humidity 0 ? 100%
