GP101ET EDIMAX GIGA POE+ EXTENDER 300M

FEATURES

EDIMAX GIGABIT POE EXTENDER
Complies with IEEE 802.3af and IEEE 802.3at Power overEthernet (PoE) Standards Gigabit LAN ports provide high-speed connectivity PoE short circuit protection to safeguard network devices Extends PoE connection for another 100 meters (328 ft.) Reduces installation and equipment costs Easy plug-and-play desktop or wall-mounted installation Power over Ethernet (PoE) is typically limited to a rangeof 100 meters due to cable capacity. For longer-distance PoEnetworking though, the GP-101ET PoE Extender is the perfectaccessory – increasing capacity up to another 100 meters (328 ft). Its a 1-Port Gigabit PoE Extender with plugand play installation requiring neither configuration nor extra electrical power, and makes for an innovative and cost-effective PoE repeater that extends power and data for another 100 meters. Extend your network for a PD (Powered Device) such as WLAN access points, network cameras, IP phones and others, with Gigabit high-speed for greater deployment flexibility. IEEE 802.3at/af Power over Ethernet Standard The GP-101ET Extender can be connected to any IEEE 802.3at/af end-nodes such as WLAN access points, network cameras, Voice over IP (VoIP) telephones and IP-based appliances where the IEEE 802.3at/af in-line Power over Ethernet port is supported. Extended Range with Higher Cost Efficiency Enables the Ethernet cable to carry both data and power beyond the 100 meters limitation for another 100 meters. This reduces the need for cable installation and eliminates the need for extension cords or electrical outlets on the wall, ceiling or any unreachable place. Overall lower installation costs and simplified deployment efforts. Plug & Play, Easy Installation No additional power supply or setup required for easy plug& play installation. Reliable & Flexible Power Supply Featuring PoE short circuit protection to safeguard network devices and protect against damage. APPLICATION DIAGRAM *Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. *Actual viewing resolution and frame rate of network cameras depend on connection speed. *Product specifications and design are subject to change without notice.

SPECIFICATIONS

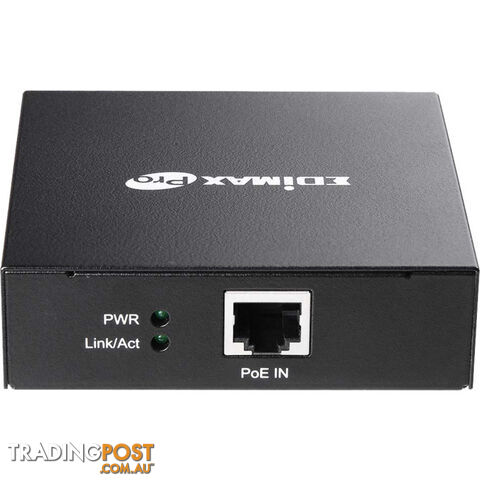

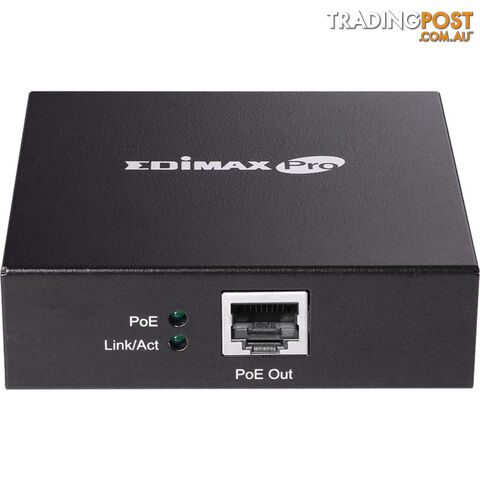

HARDWARE Ports: 1 Port RJ-45 10/100/1000Base-T Input Port 1 Port RJ-45 10/100/1000Base-T PoE Output Port LED Indicators: Link/ACT and PoE Power Input IEEE 802.3af, IEEE 802.3at Power Consumption:1.2 Watts Dimensions (L x W x H):86.8 x 79.3 x 25.8 mm Weight:200g POWER OVER ETHERNET Standard: IEEE802.3af and IEEE802.3at Power Output:IEEE 802.3af Pin Assignment: PoE Input Port: 1/2( ), 3/6(-) End-Span; 4/5 ( ), 7/8 (-) Mid-Span PoE Output Port: 1/2( ), 3/6(-) End-Span PoE Power Output: 15.4W (IEEE 802.3af) ENVIRONMENT Temperature: Operating: 0 ~ 40C Storage: -40 ~ 70C Humidity (Non-condensing): Operating: 10 ~ 90% Storage: 5 ~ 90% STANDARDS COMPLIANCE Standards: IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE ) Certifications: FCC, CE PACKAGE CONTENTS GP-101ET PoE Extender Quick Installation Guide HARDWARE INTERFACE *Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. *Actual viewing resolution and frame rate of network cameras depend on connection speed. *Product specifications and design are subject to change without notice.


DOWNLOADS


Datasheet PDF file installation Guide PDF file


Weight: 0.2780 kg
Barcode Number: 4717964701381
