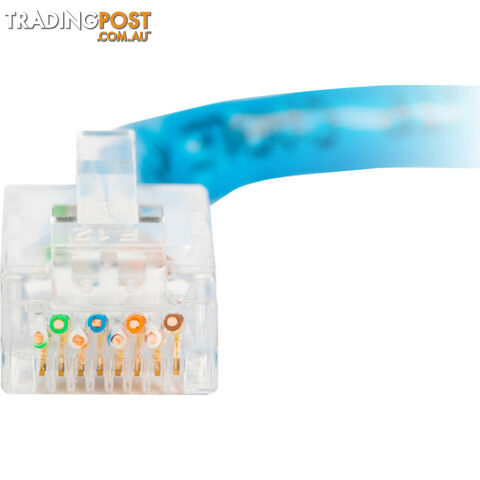

T3SPC6A-50 UTP RJ45 CAT6A SOLID SNAP PLUG 1.10MM TO 1.15MM PACK OF 50

FEATURES

The T3 SNAP PLUG™ and SNAP PLUG Tool are designed to simplify the process of terminating RJ45 modular plugs. It is a time-consuming process to assemble traditional RJ45 modular plugs, and the most difficult part would be putting the wire into the conductor in the correct order. The thicker the conductor is, the more difficult the job is going to be.
The T3 SNAP PLUG™ enables the conductors to pass through the connector itself, making it a lot easier to verify wiring order before crimp, reducing possible errors and waste of materials, save time and effort on terminating RJ45 connectors. Use the SNAP PLUG TOOL to crimp and trim in a single step, making professional wire termination fast and easy. SPECIFICATIONS Cat6A UTP 1 piece 3 prongs 50-micron fully gold-plated contacts Max conductor ID: 1.1mm - 1.15mm Solid or stranded 22 AWG Compliant with PoE and PoH standards Meets ANSI/TIA specifications

FAQ

I have a Platinum Tools crimper EZRJPROHD that was designed for the Platinum Tools EZ connectors. Can I use this crimper on the T3 Snap Plug? The T3 products are designed with tight tolerances to work perfectly together. Platinum Tools manufacture their EZplugs in the US as opposed to Taiwan, so their matching crimper is designed to work with just their connectors. Having said this, in our samples, the Platinum crimper stillworked with T3 connectors. Below is a picture of the end result. Note the slight indentation (damage) on the T3 connector left by the Platinum Tools crimper. Please be aware, as the crimp tool is not designed for otherplugs, if you use it very often, your crimp tool will be worn out quickly.


DOWNLOADS


Product Info PDF file

VIDEO


DEMOSTRATION Video not loading? Watch it over at YouTube!


Weight: 0.1020 kg
Barcode Number: 9328202035158
