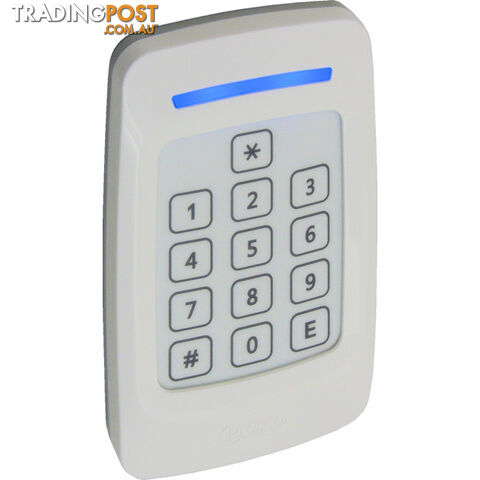

PSC2 INDOOR KEYPAD & PROX READER PSC16

OVERVIEW PSC16 INDOOR KEYPAD & PROX READER - PRESCO The Presco PSC16 Proximity Reader is an advanced,self contained RFID (Radio Frequency IDentification) contactless reader. It is capable of interfacing to either aWiegand input control panel or to Nidac?s range of Presco PAC decoders. Features: Outputs Presco and Wiegand format data Auto senses output type required via white wire connection Read range of up to 20cm Compatible with Presco PAC access controllers and allother Presco decoders, the entire syste uses low cost non-shielded cable and keypads can be up to 1 kilometer fromthe door controller (power supply and cable dependent) Compatible with industry standard 26bit Wiegand systems, fully configurable for other systems with up to 64 bits of data from the keypad and custom prox. cards and tagsare available for other wiegand formats Over 19,000,000 possible codes when used with Presco PAC Audible and visual confirmation of all actions Designed and manufactured in Australia 3 year manufacturer?s warranty SPECS Operating Voltage 8 - 15 Volts D.C. Operating Current 150 mA. max Operating Temperature 0 C to 50 C Read Range Up to 20cm (8”) Frequency 125 5 kHz Wiegand Output Pulse width: 50 s Pulse separation: 2ms Dimensions 126mm x 80mm x 17.5mm Weight 145g   Weight: 0.1590 kg
