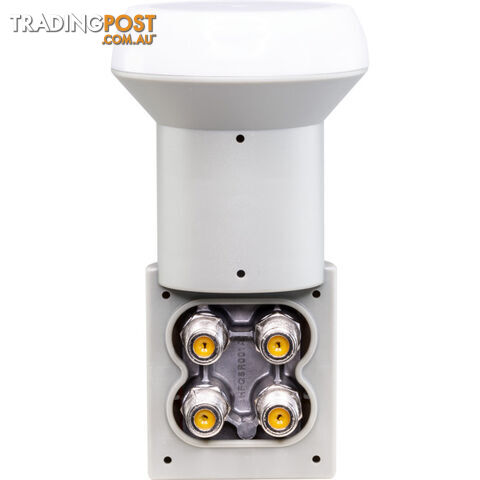

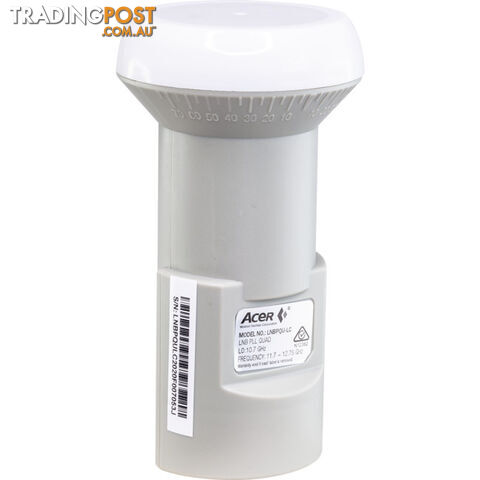

LNBPQULC QUAD LNBF OFFSET KU LO 10.7GHZ FOX APP F30835 LNBQU-LC

The Acer low current quad output LNBF is used to connect up to 2 x PVR Foxtel or 4 standard receivers to a single dish. The LNBF is commonly used for the Foxtel and Aurora service on Optus C1 & D3, where customers need to connect multiple receivers. The Acer LNBF has a L.O. frequency of 10.7 GHz. SPECIFICATIONS Reception Frequency 11.70 ~ 12.75 GHz Output Frequency 1000 ~ 2050 MHz L.O. Frequency 10.7 GHz   Room Temperature: Min 56. Max 67 dB Gain Ripple In 26 MHz Bandwidth: Max 1 dB In band: Typ 5 dB. Max 7 dB Noise Figure Room Temperature: Typ 1.1 dB. Max 1.3 dB Image Rejection Min 40 dB 1 dB Compression Point Min 0 dB 3rd Order Intermodulation (Two Tones). Intercept Point: Min 10 dB L.O. Stability Over Temperature: Max 2.5 MHz L.O. Phase Noise @ 1 kHz offset: Max - 55 dBc/Hz @ 10 kHz offset: Max - 75 dBc/Hz @ 100 kHz offset: Max - 95 dBc/Hz @ 1 MHz offset: Max - 105 dBc/Hz Output VSWR @ 75 Ohm Max 2.0 Cross-Polar Isolation Min 20 dB. Typ 25 dB Polarity Switching Voltage Vertical: Min 10.5 V. Max 14 V Horizontal: Min 16 V. Max 19 V DC Current Consumption Input Voltage. Typ 75 mA. Max 85 mA Mobile Interference Suppression (1.8 GHz) - 15 dBm output @ monopole antenna: Max - 40 dBm Feedhorn Mounting 40 mm Standard Size Operating Temperature - 40 C ~ 60 C Weight: 0.1450 kg Barcode Number: 9333095027463
