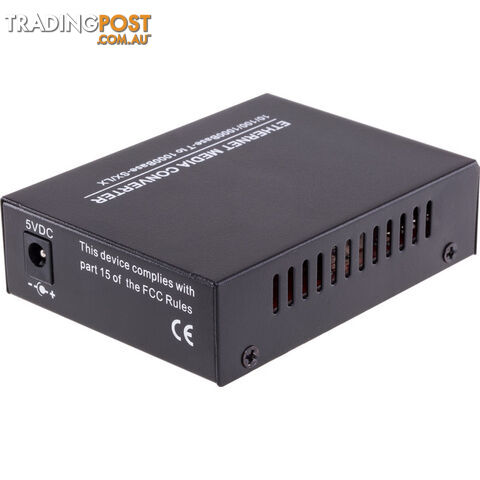

FMC1GBSFP 1G SFP SLOT MEDIA CONVERTER GIGABIT REQUIRE SFP MODULE

OVERVIEW


FMC1GBSFP series 10/1001000M SFP slot media converter are effective solution, while uplink interface upgrade or network re-design. It can implement date transmission between twisted pair electrical signals and optical signals (SFP module).

FEATURES
Compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX Standards.
Provide one 10/100/1000Base-T port with RJ-45 connector, one SFP Slot socket.
Full-duplex and half-duplex auto-sensed
Supports Auto MDI / MDI-X function
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Front panel Diagnostic LED Indications



TECHNICAL INDEXES

Parameter

Specifications




Access mode



10/100/1000Mbps Gigabit Ethernet




Standard



IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX, IEEE802.3x Flow control




Wavelength



850nm/1310nm/1550nm




Transmission distance



Up to SFPmodule




Port



One RJ45 connector, connected
One SFP Socket




Conversion means



Media conversion




Delay








BER








MTBF



100,000 hours




LED



PWR (power supply); FX LINK/ACT (optical link/action)
FDX (FX full duplex); TP LINK/ACT (twisted pairs link/action)
TP 1000 (1000M transmission rate of twisted pairs),
TP 100 (100M transmission rate of twisted pairs)




Power



AC220 0.5A/DC-48 (built-in)




Power consumption



5W




Operating temperature



-10~55’ C




Operating humidity



5%~90%




Maintaining temperature



-40~70’ C




Maintaining humidity



5% ~ 90% non-condensing




Dimensions



94mm *71mm * 26 mm (external power supply)



AVAILABLE FIBRE MEDIA CONVERTERS
Code Model Ports Speed Mode Dual Fibre Connector Distance
09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM
09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM

09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M

09051550 4P100SM20KSC 4 100MB SM Y SC 20KM
09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM

09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.


Weight: 0.3410 kg
Barcode Number: 9328202025081
