BSW150B BLACK 8" NETWORK ACTIVE SUB 150W CLASS D AMP

BLUESOUND PROFESSIONAL BSW150B BLACK NETWORK POWERED SUBWOOFER

The Bluesound Professional BSW150 is a network active subwoofer with streaming capability designed specifically for use in commercial installations.

The BSW150 is so discrete you’ll forget where you put it.

Designed to fit neatly in boardrooms or small commercial establishments, this compact subwoofer digs deeper and plays louder than its bulkier rivals, and can be easily positioned featuring several clever installation options, the BSW150 will fit perfectly into your location of choice.

The BSW150 is based on the established BluOS platform and can be network paired with other Bluesound Professional speakers or streamers to form a complete system which is capable of playing and distributing content from local network storage as well as from a large number of streaming services, including some specifically designed for commercial use, such as SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business, Tunify and radio stations or can be connected to other equipment through its line input.

The loudspeaker features a 8” LF driver powered by a high efficiency amplifier including a low power standby mode.

The frequency response of the speaker is 22Hz – 150Hz. Inbuilt DSP allows for equalization as well as other audio processing. Access to content is via wired ethernet or WiFi for glitch-free streaming.

Control of the speaker can be accomplished by any Windows/Mac computer as well as any iOS/Android phone or tablets and the Bluesound Professional CP100 wall mount controller.

Customize volume, crossover and phase control directly in the BluOS Controller app.

Third party control is also possible with any of the leading systems.

Security provisions prevent any authorized control of the system.

The BSW150 is available in black or white finishes.

Network streaming Subwoofer speaker system
8”LF driver
150w power amplifier
22Hz – 150Hz frequency range
DSP providing equalization and other audio processing
Volume, crossover (50-150 HZ) and phase control directly in the BluOS Controller app
Flexible and unlimited grouping of zones within a BluOS system
Integration with local network content storage
Integration with many streaming services including SoundMachine, Custom Channels, QSIC etc.
The side panel control is defeatable via the BluOS app
Integration with a wide variety of internet radio platforms
PC/Mac, iOS/Android and third-party control
Security preventing unauthorized control
Specialist Bluesound Professional control panels
Support of Hi-Res audio up to 192kHz/24 bit
Support of MQA content
Streaming via ethernet for increased reliability (wireless streaming also supported)
USB input for replay from local connected drives

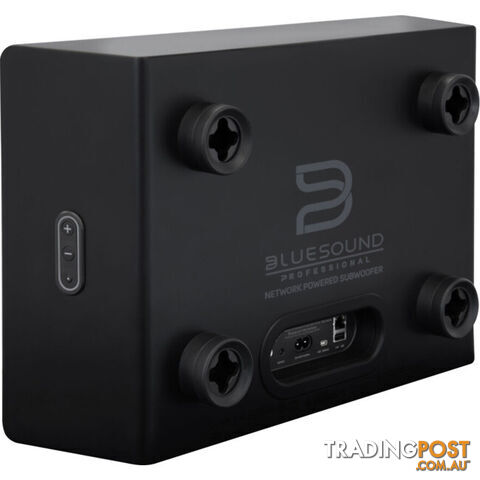

Wall mounting with provided bracket
Black or White finish
SPECIFICATIONS

FEATURES

Physical Controls: Volume /-, Function Mode
App Controls:
Volume /-, Variable Crossover Frequency
Variable Phase
Universal Voltage: 100V-240V, 50/60Hz
Low Power Mode: Network Standby
Finish: Black, White
Mobile Operating System: BluOS - Free Android and iOS App available online at Google Play and Apple App Store
Processor: ARM® CORTEX™ A9, 1 GHz

FREQUENCY RANGE

Frequency Response:
Response-On Axis @ 0 degrees /- 2dB:
22Hz – 150Hz
LF Cutoff -10dB:
20Hz

ACOUSTIC DESIGN

Woofer (Nominal): 203mm (8”) Polyproplene cone, Rubber Surround
Crossover: 50Hz - 150Hz, LFE setting

AMPLIFIER POWER

Continuous: 150W
Dynamic: 150W
Dynamic Peak: 200W
Type: CLASS D
DIMENSIONS (UNIT) W x H x D: 447mm x 285mm x 122mm (17.6” x 11.25” x 4.8”) (not including feet or wall bracket)
Gross Dimensions: 555mm x 440mm x 235mm (21.8” x 17.3’ x 9.25”)
Net Weight: 7.9 kg (17.5 lbs)
Shipping Weight: 12.69 kg (28lbs)
Network:
Gigabit Ethernet RJ45
Wi-Fi 5 (802.11ac, dual-band)
USB: Type-A (upgrade only); Type B (mini) for service
Audio Input: Mono Low/Line Level Input
Power: Universal bi-pin AC Cord input (100 - 240AC)
Storage Environment: -10° C to 50° C, 20% to 80% relative humidity
Operating Environment: 0° C to 40° C
