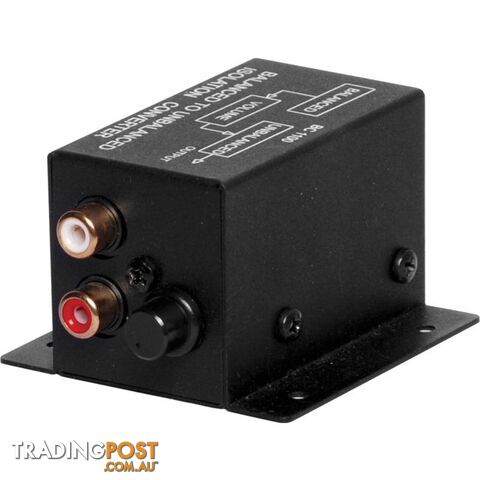

A2513 XLR TO RCA CONVERTER BALANCED TO UNBALANCED

Balanced To Unbalanced Converter XLR-RCA Balanced 600 Ohm 3 pin female XLR to unbalanced 10K Ohm 2 x RCA with level control. 10dB max signal gain. Stepsup input signal by factor of 16, ie 20mV in = 320mV out. This unit can be used: for unbalancing a line level signal (converting a balanced signal to unbalanced as an isolation unit to prevent hum loops in audio systems. Specifications: Frequency response ..........................20 Hz - 20kHz /- 3dB Input level: ........................................................0.775Vrms Output level............................................................1.97Vrms (measured at 1kHz with volume control set to max). Maximum output level before distortion .................. 24dBm Note the RCA output sockets are in parallel Weight: 0.1550 kg Barcode Number: 9321758134023
