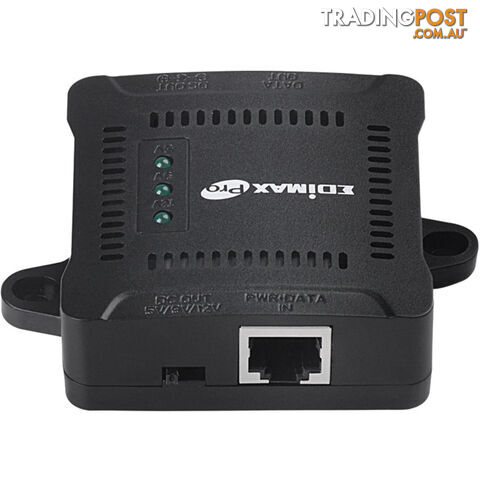

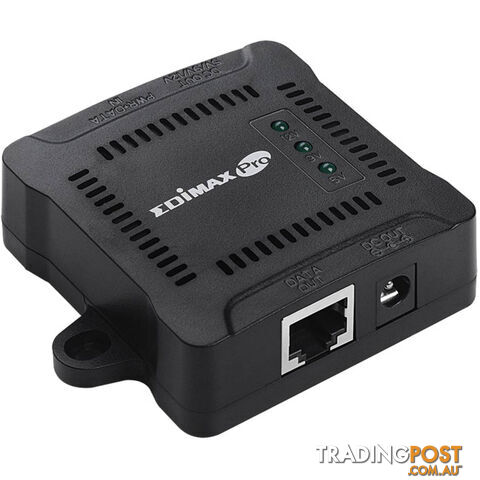

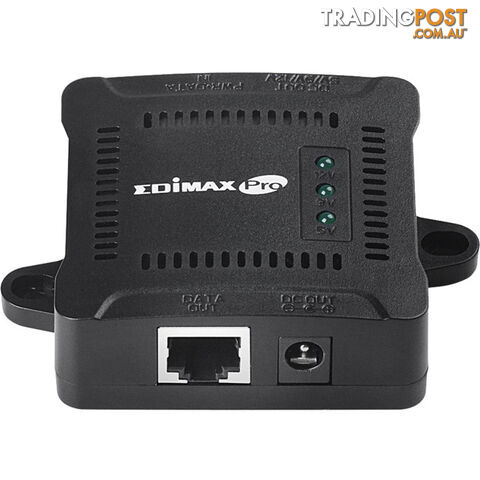

GP101ST 5V 9V 12V POE+ GIGA SPLITTER 2A

FEATURES GIGABIT POE SPLITTER WITH 2A OUTPUT ON 5V, 9V AND 12V Supports IEEE802.3at/af PoE and proprietary PoE such as PoE injectors Splits a networked PoE connection into separate power and Gigabit data connections Allows for non-PoE device installation in remote locations where power is unavailable Adjustable slide switch for either 5V/2A, 9V/2A or 12V/2A DC output power PoE short circuit protection to safeguard network devices Delivers power and data to PoE splitter from up to 100meters (328 feet) over a single Ethernet cable Reduces installation and equipment costs Easy Plug and Play desktop or wall-mounted installation   The GP-101ST Gigabit PoE (Power over Ethernet) Splitter delivers both data and electrical power to non-PoE Fast Ethernet or Gigabit Ethernet–enabled products such as network cameras and wireless access points, using an Ethernet cable and without deploying power outlets and electrical cabling. Ideal for remote locations, the GP-101STallows data transfer between the PSE (Power Source Equipment) and GP-101ST up to Gigabit speeds and delivers power output voltages of 12V, 9V or 5V DC simultaneously up to 100 meters (328 feet). The GP-101ST is easy to install and requires no tools or software, while offering the benefits of cost savings as well as flexible network planning and high reliability. Easy Installation End-to-End PoE Solution The GP-101ST supports 802.3at/af and proprietary PoE, ensuring compatibility with other 802.3at/af PoE/proprietary-compliant injectors and switches. The GP-101ST is easy to install and requires no tools or software configuration. Just connect the GP-101ST device to any power source device such as a PoE injector unit or a PoEswitch to provide power to Ethernet-enabled devices. The GP-101ST offers small to medium business a complete end-to-end PoE solution. Cost Saving Network Deployment The GP-101ST supports 802.3at/af ensuring compatibility with other 802.3af PoE compliant injectors or PoE switches. Taking the convenience of PoE, the GP-101ST eliminates the need and costs to place an Ethernet-enabled device such as awireless access point or a network camera near a power outlet or deploy electrical cabling. For flexible network deployment options, the compact-sized GP-101ST can be mounted on a ceiling or wall up to 100 meters (328 feet) from a power source. Reliable and Flexible Power Supply The GP-101ST features PoE short circuit protection to safeguard network devices and supports 5V, 9V or 12V DC output with a built-in slide switch to select the power output according to the requirements of your network device. APPLICATION DIAGRAM SPECIFICATIONS HARDWARE Ports 1 Port RJ-45 10/100/1000Base-T PoE Input Port 1 Port RJ-45 10/100/1000Base-T Output Port 1 Port DC Jack Output Port LED Indicators 5V/9V/12V, Power and AC Power Input IEEE 802.3af, IEEE 802.3at Power Output DC Out Adjustable Slide Switch for Either 5V/2A, 9V/2A or12V/2A DC Output Power Y-Cable DC Pin (ODxIDxL) : 5.5 x 2.1 x 9.5 mm and 3.5 x 1.35 x 11 mm Pin Assignment 1/2( ), 3/6(-) End-Span (mode A) or 4/5( ), 7/8(-) Mids-Span (Mode B) Dimensions (L x W x H) 63 × 64 × 23 mm Weight 65g ENVIRONMENT Temperature Operating: 0 ~ 40°C Storage: -40 ~ 70°C Humidity (Non-condensing) Operating: 10 ~ 90% Storage: 5 ~ 90% STANDARDS COMPLIANCE Standards IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE ) Certifications FCC, CE PACKAGE CONTENTS GP-101STPoE Splitter One DC Y-Cable Quick Installation Guide HARDWARE INTERFACE DOWNLOADS Datasheet PDF file Quick Installation Guide PDF file Weight: 0.1620 kg Barcode Number: 4717964701374
