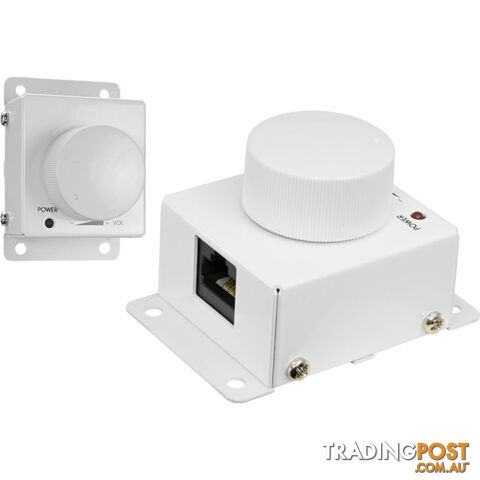

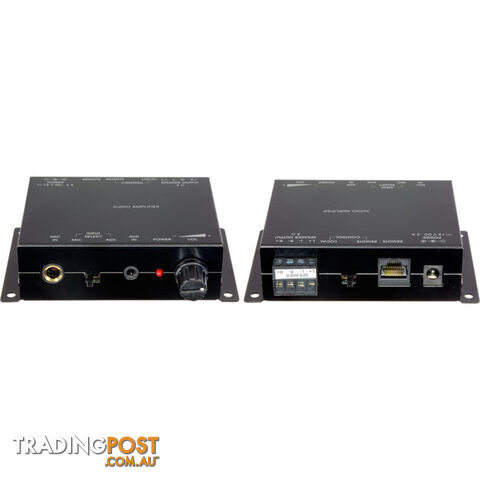

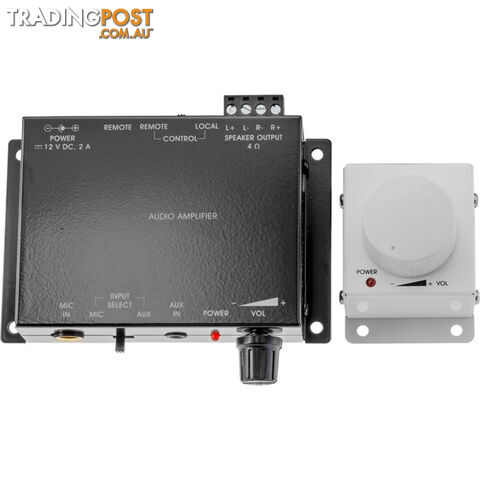

PRO1328K MIC AND STEREO POWER AMPLIFIER KIT WITH VOLUME CONTROL BOX

This unit is an excellent way to add an additional zone to an existing system. Compact 15w RMS stereo amplifier withselectable 3.5mm stereo or microphone inputs. Remote wired volume control. FEATURES 15 Watts per channel Speaker volume control Class D power amplifier Speaker protection circuit Large detachable terminal block (supplied) for quick andeasy installation. Screw terminals handle wire sizes from 24 to 12 gauge. Connections Input: 3.5mm stereo Input 6.5mm stereo - dynamic microphone Speaker outputs: for 1 speaker pair (via screw terminals) SPECIFICATIONS Inputs: Dynamic microphone or setreo audio line level Mircophone pre-Amplifier gain: 40dB Speaker Audio Power Amplifier: Power Amplifier Type:Stereo Class-D Output power:15W(rms) per channel (@ RL=4 ohm) THD N :0.06 % (@ RL=8 ohm, f= 1 kHz) Minimum Load Resistance :4 ohm Includes Speaker Protection circuit Power & Dimensions: Power Consumed: 2A Max Power Source: DC 12 Volts 2A (included) Size (LxWxH): 115mm x 98 mm x 31mm Pro2 Class D Mini Amps - Range Overview May 2020 Video not loading? Watch it over at YouTube! Weight: 0.5440 kg Barcode Number: 9328202017277
