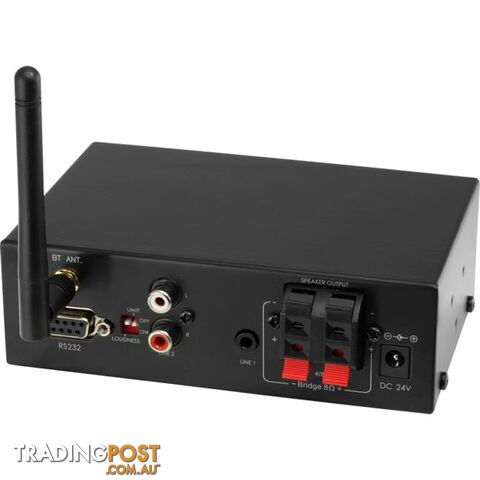

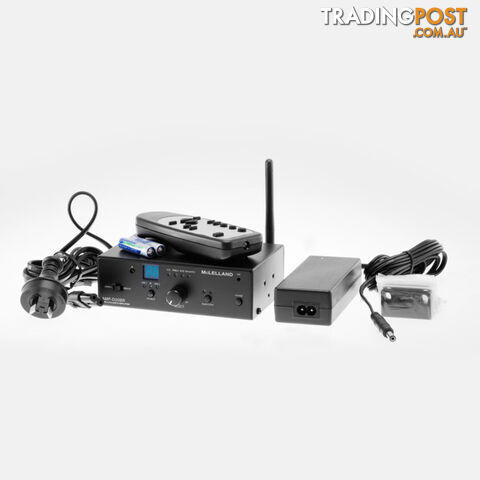

AMP-D20BR CLASS D BLUETOOTH AMPLIFIER 20W + 20W MCLELLAND AMPD20

Efficient Class D design occupies little space and requires no ventilation, yet provides 20W RMS x 2CH output. It accepts two line level sources, with the internal Bluetooth receiver acting as the third input.Switchable limiter provides protection against being over driven in permanent installations. Switchable loudness control greatlyimproves overall sound quality when played at a low levels in office or home environments. 9-pin serial interface allows RS-232 control by external devices. FEATURES Bluetooth receiver for wireless high fidelity audio fromportable devices Audio inputs: RCA x 2/ 3.5 Mini Jack Bluetooth connection Internal Microphone RS232 Controller Input Selection VOL/ TREBLE/ BASS/ BALANCE Adjustment Limit and Loudness ON/ OFF switch (DIP switch) Stereo/ Mono Selectable Speaker output: Terminal Blocks DC24V Input Jack SPECIFICATIONS Output power: 2x17 W @ 4O THD1% RMS ( 2x20W MAX) Frequency Response: 35Hz~50KHz(-3dB) Input Sensitivity: 330mV (17W 4O) Input Impedance (Audio): 10K Power input: DC 24 V Power consumption: 40W(17W 1% 4O ) Bridge mode support 40W for speak out (Mono. Type) Product Info PDF file Weight: 1.21 kg Barcode Number: 9328202033765
