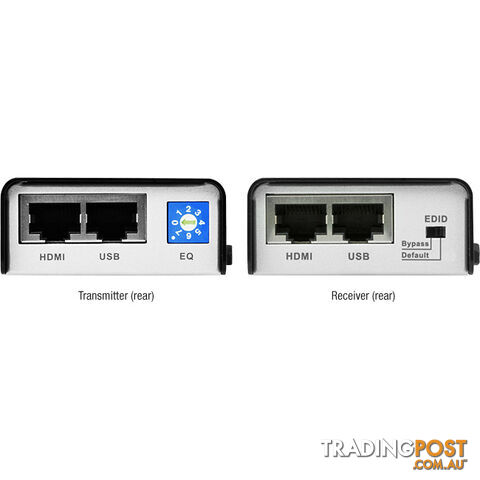

HDMIUC5 HDMI & USB2.0 OVER DUAL CAT5 40M @ 1080P DOLBY DST 3D VE803

FEATURES

ATEN VE-803 HDMI USB EXTENDER
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. Itis capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow youto extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel controlor a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCPcompliant, providing an easy and ideal HDMI extender solution for any application. We recommend the use of our DOSS TWIN CAT5E cable. It is insulated in a Black PVC Jacket and contains 2x CAT5E cables. This is great for dual CAT5 HDMI Extenders as one cableis easier to install than two, and unique colouring allows easy identification of data lines. Click here to see the product... FEATURES Uses two Cat 5e cables to connect the local and the remote units Extends 1080p by 40m; extend 1080i by 60m Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200) Supports USB touch panel 8 segment equalization adjustment switch optimizes display quality Support Dolby True HD and DTS HD Master Audio Built-in 8KV/15KV ESD protection Transparent USB Support - supports all USB 2.0 full speed device Supports wide screen formats HDMI (3D, Deep Color); HDCP compatible - signaling rates up to 2.25Gbits Powered local unit via USB cable

SPECIFICATIONS

Function VE803T VE803R Connectors HDMI In 1 x HDMI Type A Female (Black) N/A HDMI Out N/A 1 x HDMI Type A Female (Black) USB 1 x USB Type B Female (White) 1 x USB Type A Female(White) HDMI/USB Port * 2 x RJ-45 Female (Silver) Power 1 x DC Jack Switches EQ Compensation N/A 1 x 8 position switch EDID Selection 1 x slide switch N/A LEDs Power 1 (Green) 1 (Green) HDMI N/A 1 (Green) USB N/A 1 (Green) Video 1080p @ 60Hz, at 40m 1080i @ 60Hz, at 60m Power Consumption DC5V, 1W DC5V, 3.9W Environment Operating Temp. 0 - 50°C Storage Temp. -20 - 60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal Weight 0.16 kg Dimensions (L x W x H) 7.16 x 3.16 x 2.30 cm

IN THE BOX

1 x VE803T HDMI USB Extender 1 x VE803R HDMI USB Extender 1 x Power Adapter 1 x USB Cable (1.8 m) 1 x Mounting Kit 1 x User Instructions

DOWNLOADS

User Manual Data Sheet



Weight: 0.6870 kg
Barcode Number: 4710423779716
