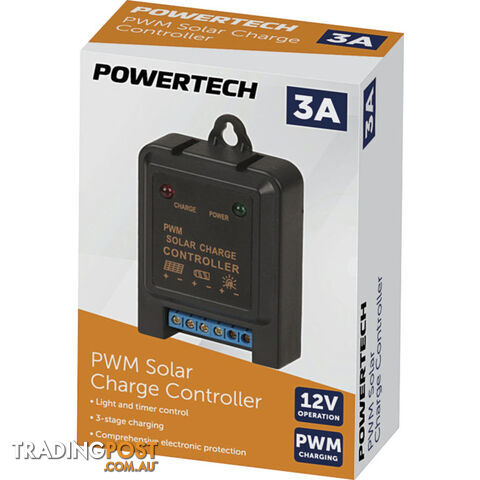

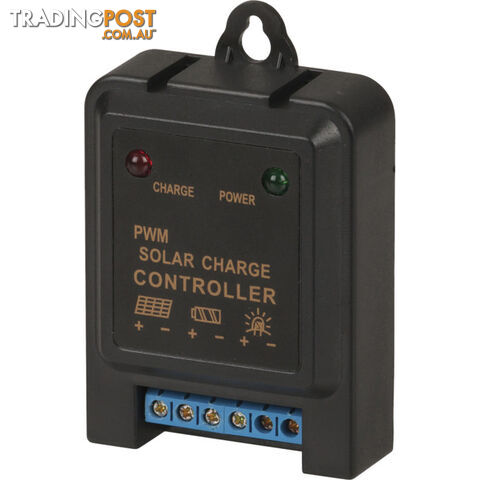

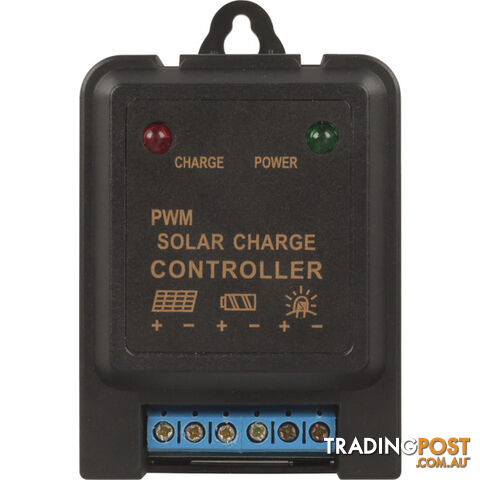

MP3762 MINIATURE 12V SOLAR CONTROLLER PWM

MINIATURE 12V 3A PWM SOLAR CHARGE CONTROLLER

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.

Features:

- Red charge LED indicator

- Green power LED indicator

- Hang hook

- Battery voltage automatic identification

- PWM charging mode

- Comprehensive electronic protection

Specifications:

Rated Voltage: 12V

Strong Charging Pressure: 14.8V

Equilibrium Charging: 14.5V

Float Charging Pressure: 13.7V

Under Voltage: 10.8V

Under Recover Voltage: 13V

Non–Load Current: ≤6mA

Charging Circuit Voltage drop: ≤0.2V

Discharge Circuit Voltage drop: ≤0.1V

SPECIFICATIONS
DC Voltage : 12.0V
IP Rating : 22
Dust/Particle Ingress Protection : 2 - Objects > 12.5mm, Fingers or small objects
Liquid/Moisture Ingress Protection : 2 - Dripping water when tilted to 15deg
Width : 52.0mm
Height : 22.0mm
Depth : 80.0mm
Weight : 33.0kg
Charge Controller Technology : Pulse Width Modulated (PWM)
Max Charging Current : 3.0A
Max Load Current : 3.0A

Weight: 0.0460 kg
Barcode Number: 9319236750346
