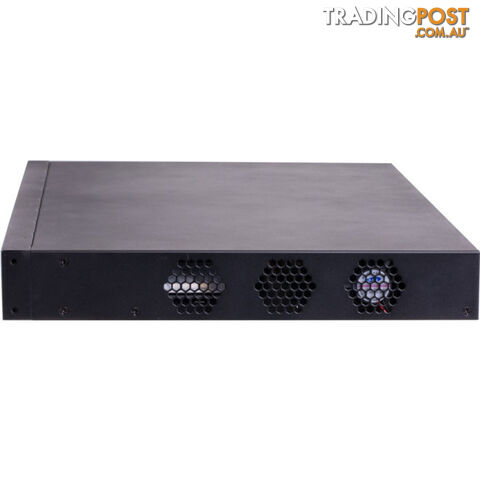

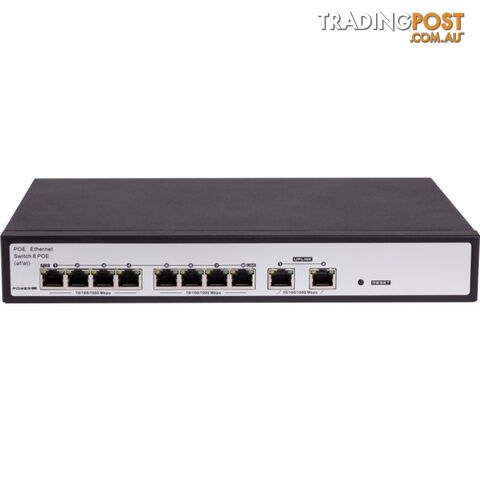

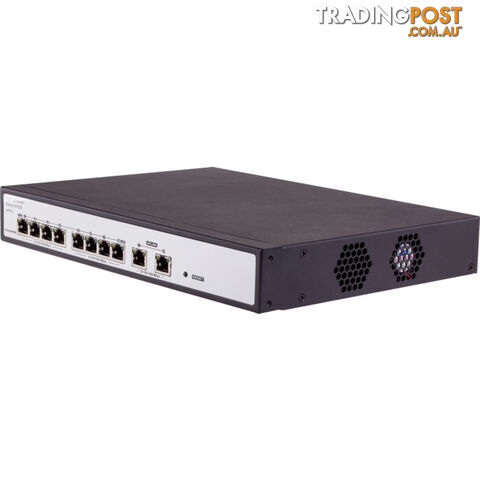

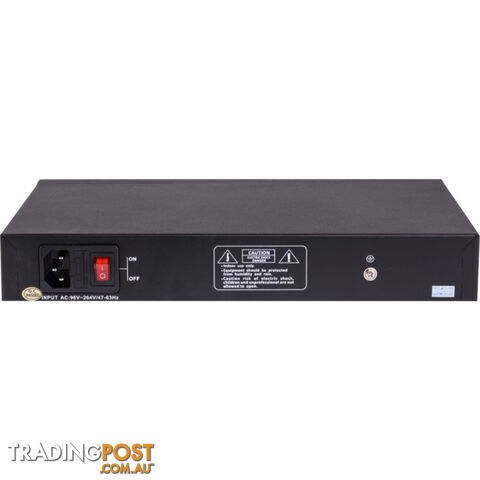

POE08265 8 PORT 265W POE SWITCH

8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch FEATURES Provide 8 x 100Mbps Ethernet ports, 2 x 1000Mbps combo up-link port (2x10/100/1000Mbps port or 2x1000Base-XSFP optical fiber port) Support End-Span method, complies with IEEE802.3 af/atstandards, can supply max 30W power which is possible to power high-power infrared cameras. Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards. Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX. Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe. Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping Excellent lightning protection, lightning capacity up to 4KV Easy to install and operate on walls or on the desktops OVERVIEWS POE08265 is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 8 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe. This general network switch and PoE network switch.can meetcustomers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 8 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices. APPLICATIONS Security Monitoring System Multimedia Network Teaching System Medical Monitoring Display System Industrial Automation Control System Banking, securities, financial information display system Remote Network Server Monitoring Department Store Security Casino Security Hospitals, Airports and banks School Campuses TECHNICAL SPECIFICATIONS   Model POE08265 Power Supply Power Supply Mode Power Adaptor Voltage Range DC 48~56V Power Consumption The device50000h       Weight: 3.07 kg Barcode Number: 9328202026323
