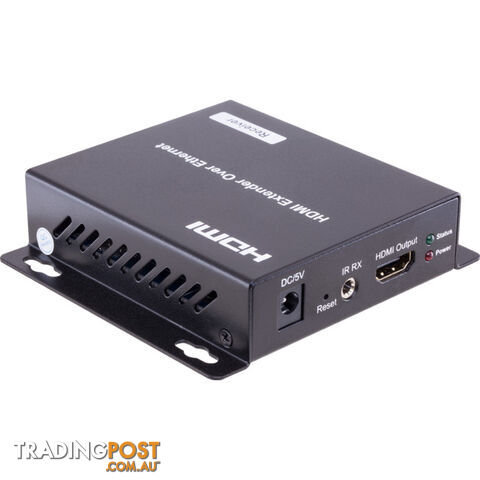

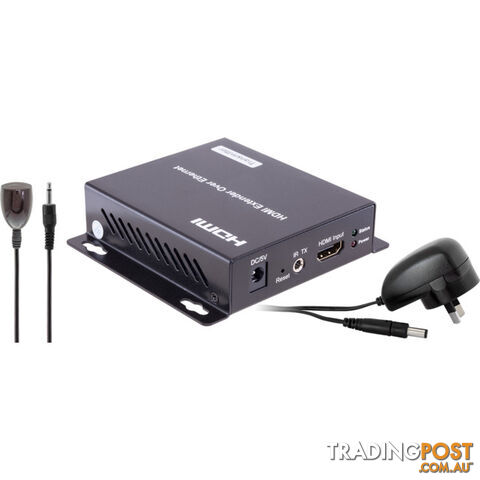

HDMIIPECOV2 HDMI OVER IP DISTRIBUTION MJPEG COMPRESSION

FEATURES HDMIIPECOV2 is a budget option for extending HDMI source over network, using MJPEG compressoin. It supports one to one and one to many operation. Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable Supports point to point, point to many MJPEG compression HDCP compliant With wideband IR (38-56k Hz) control Supports TCP/IP protocol With mounting ears Default TX IP: 192.168.168.55 Default RX IP: 192.168.168.56   SPECIFICATIONS Operating Temperature Range -5 to 35°C Operating Humidity Range 5 to 90%RH (No condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) Supported Video Format DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p Transmission Distance 120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable Data Bandwidth 10-90Mbps Power Consumption TX: 3 Watts, RX: 3 Watts Dimension 103.5(L) x 93.5(W) x 24.6(H)mm IR Frequency 38K-56KHz Net Weight TX:220g, RX:220g FAQ Is the HDMIIPECOV2 suitable for many-to-many applications? Yes, however it is not as easy to setup nor is it recommended for reasons explained below. The HDMIIPECOV2 uses MJPEG compression which requires very high bandwidth and is likely to saturate your network bandwidth when used in a many-to-many scenario. For this type of application we strongly recommend the Pro2 HDMIIPPRO which uses H.264 compression that utilises substantially lower bandwidth when compared to MJPEG. The other issue with many-to-many applications is that it requires you have a managed network switch, and set up different VLANs for each transmitter used and then change the receiver IP address accordingly. For example, you set VLAN 1 for Transmitter 1 (eg. Foxtel), VLAN2 for Transmitter 2 (eg. DVD player), whenyou want the Receiver 1 to pick up the Foxtel, you change the Receiver 1 IP address to the same subnet as VLAN 1 and if you want to display the DVD player, you would change it to the same subnet as VLAN2. DOWNLOADS User manual PDF file Weight: 1.11 kg Barcode Number: 9328202001993
