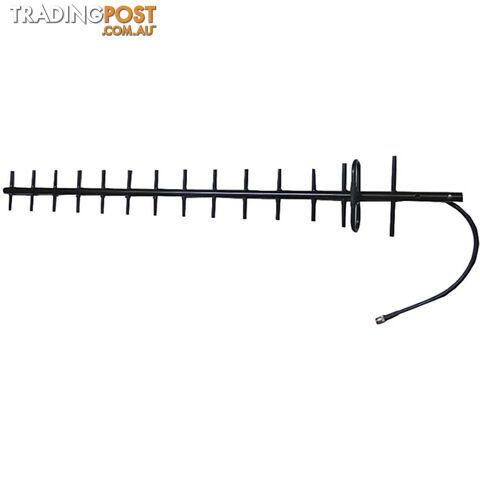

ANT-BH-YG-100-10 YAGI 698-890MHZ ANTENNA 14DBI GAIN BLACKHAWK

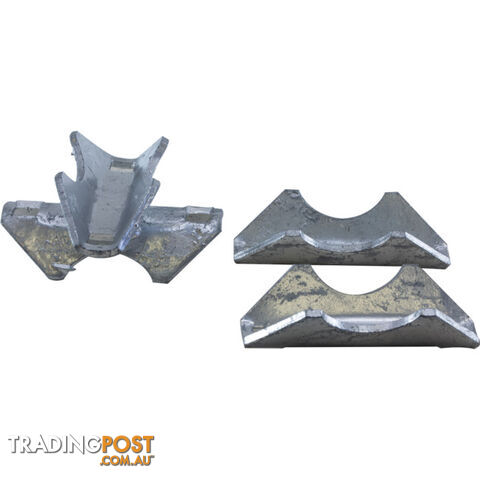

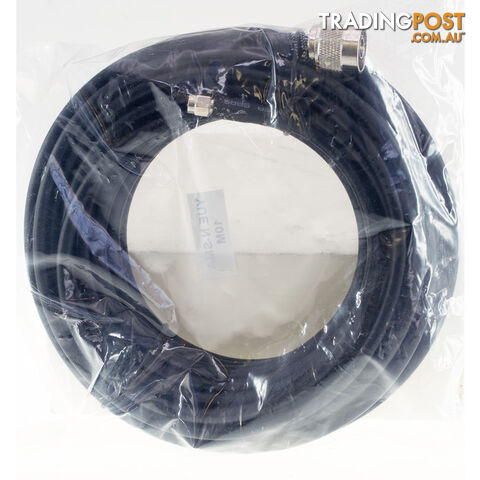

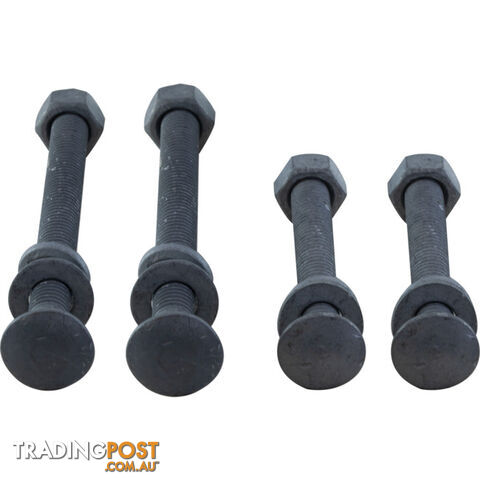

This fully welded 14 element antenna has been designed for ruggedised locations and includes a Mounting Bracket Providing a 15dBi gain for 690-890 MHz this premium grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia. The Blackhawk Yagi antennas provide the perfect solution for voice and data applications where high gain antennas arerequired. Perfect for fixed wireless terminals, mobile broadband internet and smart repeater applications. Fully welded construction suited to extreme climate applications. Features: Ruggedised fully welded construction for extreme conditions Powder coated finish Mounting clamp included 30cm pig tail terminated N Female Includes 10m LMR 240 Lead Perfect solution for voice and data applications where high gain antennas are required Ideal for fixed wireless terminals, mobile broadband Internet and smart repeater applications Model blackhawk-yagi Frequency 690-890 MHz Gain 15dBi Cable 30cm Low Loss Cable with N Female Connector fitted Antenna Length 136cm Mount Type Galvinised U-Bolt Pole clamp mount   ELECTRICAL SPECIFICATIONS Frequency Range 690-890 MHz Impedance 50V VSWR 25 dB Max Input Power l00W Polarization Vert/Horz H 27 Half-power beam width E 26° MECHANICAL SPECIFICATIONS Dimensions '1360x185"75(mm} Weight 1.05kg Rated Wind Velocity 216km/hr Operating Temperature 50°C 7011C Connector N Female Material Aluminium Antenna Colour Black Diameter of installing pole 30-50mm Weight: 1.88 kg
