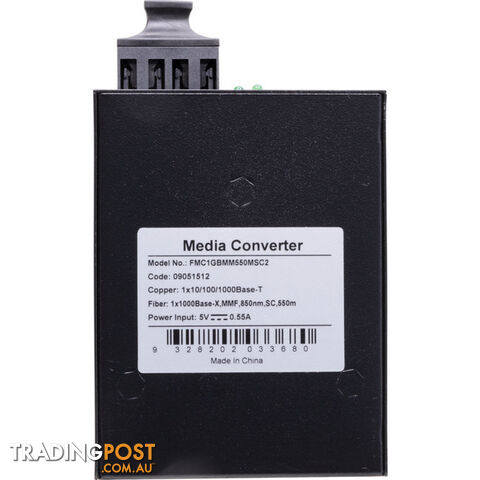

FMC1GBMM550MSC2 GIGABIT FIBRE MEDIA CONVERTER MM DUAL FIBRE SC 550M NO DIP

FEATURE 10/100/1000M Fiber Media Converter translates the signal from a twist-pair 10/100/1000Base-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 100km by fiber optic cable,which supports LFP(Link Fault Pass-through) function & US Powered 10/100/1000Mbps auto-sensed, easily upgrade Full-duplex and half-duplex auto-sensed MDI/MDI-X Auto Negotiation 10/100/1000Mbps store-and-forward 1000Mbps cut-through transmission Packet size up to1518bytes Support 9K Jumbo Frame Supporting VLAN / VoIP /QoS packets Support flow control and reduce broadcast packets Supporting STP to form a redundant network Extremely low power consumption, low heat, stable performance Providing Desktop, Wall-mounted, Chassis, DIN-rail installation AVAILABLE FIBRE MEDIA CONVERTERS Code Model Ports Speed Mode Dual Fibre Connector Distance 09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM 09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM                 09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M                 09051550 4P100SM20KSC 4 100MB SM Y SC 20KM 09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM                 09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.       SPECIFICATION Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Data Rate Copper: 10/100/1000M; Fiber: 1.25G Flow control Full duplex: flow control; Half duplex: back pressure Copper Port No.s of Copper Port:1 Connector: RJ45 Connector Distance:100m Fiber Port No.s of Fiber Port:1 Connector: SC as default, FC/ST optional Wavelength: MMF 850nm Distance: MMF 550Km LED indicators PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs), 1000 (100M transmission rate of twisted pairs) Power supply Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional Power consumption
