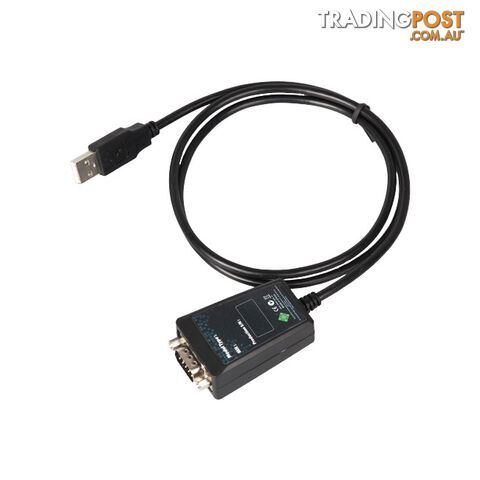

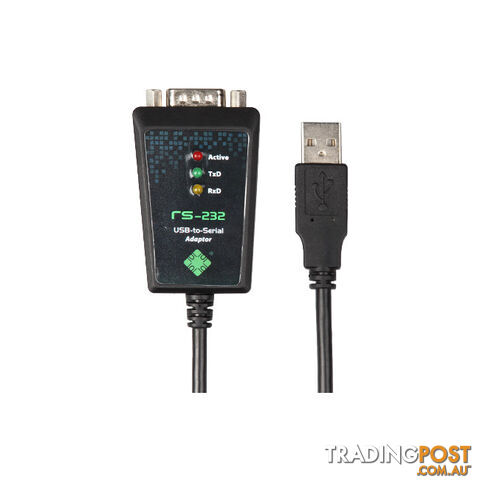

UR232 USB2.0 TO SERIAL RS232 LEAD 1M IOCREST FTDI CHIPSET

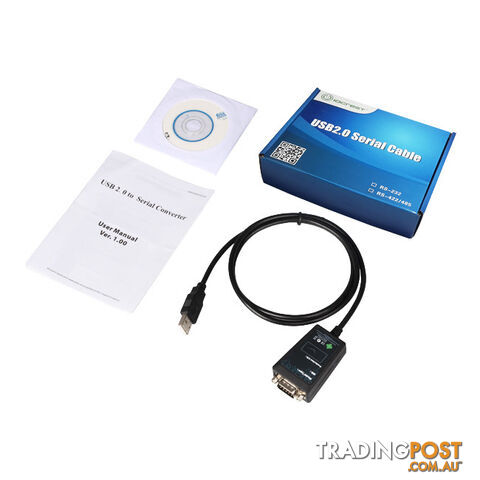

IOCREST USB 2.0 TO SERIAL CONVERTER (FTDI CHIPSET) - 1 METER FEATURES Standards: conforming to USBV1.0, 1.1 and 2.0 USB signals: VCC, DATA , DATA-, GND and FG RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI Single chip USB to asynchronous serial data transfer interface Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none Flow control none, hardware and xon/xoff Synchronous and asynchronous bit bang interface options with RD# and WR# strobes UART signal inversion option USB 2.0 Full Speed capable Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD) Extended operating temperature range; -40 to 85°C APPLICATIONS USB to UART Cable POS Printer Terminal Networking System Industrial and Power Meter USB Bar Code Reader USB Digital Camera Interface USB Wireless/Wired Modem PACKAGE DETAILS 1x USB 2.0 to Serial Converter 1x User Manual 1x CD Driver

Extended operating temperature range; -40 to 85°C Driver Compressed file Weight: 0.1150 kg Barcode Number: 810154018932
