DA44 44DB TV DISTRIBUTION AMPLIFIER AUSTRALIAN MADE

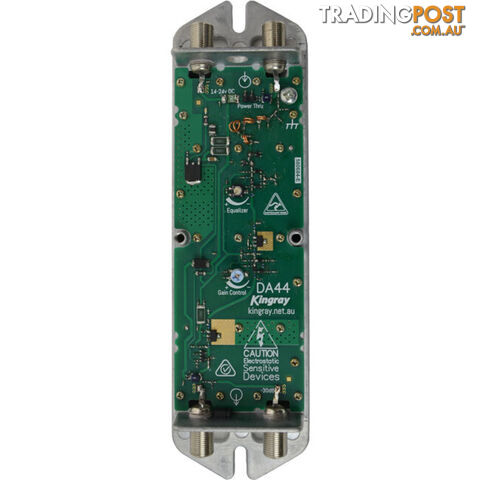

OVERVIEW DA44 44DB TV DISTRIBUTION AMPLIFIER - KINGRAY TV Signal Distribution Amplifier with 44dB Gain, Single Input, Frequency Range of 174-694 MHz which can be either locally or remotely powered. Kingray’s DA44 distribution amplifier has been designed for today’s digital television signals. The technology used is hybrid bipolar and GaAs technology, which allows for a greater output capacity, whilst having a lower noise figure. The amplifier contain mid-stage gain controls, a number of flexible powering options and are built in a fully shielded die-cast housing. The DA44 distribution amplifier has a single RF input, single RF output & a test port. Power supplied sold separately. FEATURES Frequency Range 174~694 MHz (Channels 6 to 51) 44dB Maximum Gain 10dB Mid-Stage Gain Control Single RF Input Local or Remote Powering Options F-Type Connector for Power Input Adjustable Slope Control of 0dB to 10dB -30dB Test Point Ability to send power out via the RF Input High Output Figure: 118dB IMR3 (DIN45004B) Connectors: F-Type Power Consumption: 300mA Operating Voltage: 18V DC Operating Temperature: -10 C to 50 C Suitable Power Supply: PSK18M or PSK182F IN THE BOX DA44 Amplifier Instruction Manual Mounting Screws Weight: 0.3140 kg Barcode Number: 9319493316248
