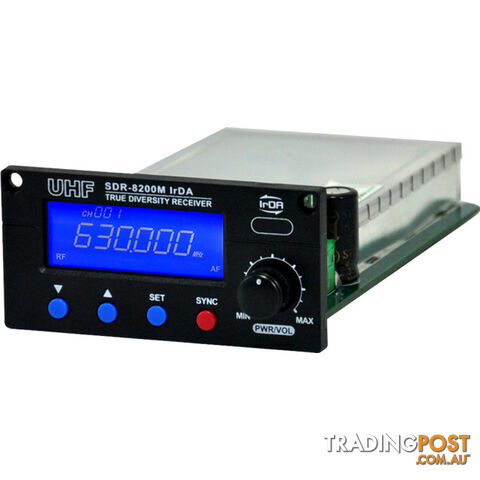

SDR8200M-5A 100CH TRUE DIV UHF MOD 520MHZ CHIAYO

CHIAYO SDR-8200M-5A IRDA UHF 2-WAY SYNC TRUE DIVERSITY RECEIVER MODULE   FEATURES World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter. 100 factory preset user-selectable UHF channels. True diversity reception for best performance and reliability. Helical Filter RF front end ensures high selectivity. Excellent IF design delivers high image and spuriousrejection. Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts. Clear and intuitive LCD display for easy operation and quick set-up. Displays channel, frequency, RF level, AF level,antenna selection and transmitter battery level. Balanced and unbalanced audio output. 20-pin golden finger for easy installation.   SPECIFICATIONS Model SDR-8200M-5A IrDA Frequency Range UHF 520 - 526 MHz Bandwidth 25 MHz Receiving Mode True diversity Peak Deviation ± 40 KHz Channel Sync 2-way (RX ? TX) Sensitivity S/N > 80 dBm at 10 dBµV S/N Ratio > 85 dB(A) T.H.D.
