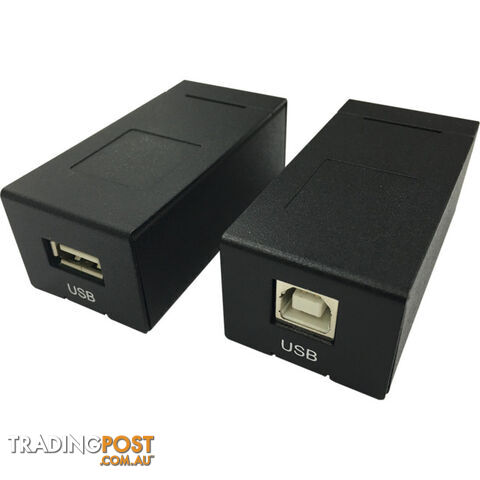

UE1P 1 PORT USB 2.0 CAT5 EXTENDER 150M INDUSTRIAL

KRYSMA USB 2.0 1-PORT CAT5 EXTENDER KIT 150M FEATURES Krysma USB 2.0 CAT5/6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 150m. This device is a cost effective and high performance USB 2.0 extender, compliant with USB 2.0 Specifications (up to 480Mbps). It consists of a local unit which connects to the computer and a remote unit that connects up a USB peripheral. Standard, low cost CAT5/5e/6 network cable (not included) is then used to bridge the connection between the two units. SPECIFICATIONS General USB 2.0 interface, backwards compatible with USB 1.1/1.0 Maximum distance between Local and Remote Unit: 150m Connection via CAT5 (or higher) cable Plug & Play installation, no drivers required Compatible with all OS with USB support Temperature Range: 0° – 40°C (operating), -10° – 70°C (storage) Humidity: max. 80% (operating), max. 95% (storage) Transmitter Ports:RJ45 Female, 1x USB 2.0 Type B Female, 3.5/1.35mm Outer/Inner DC socket Dimensions (WxDxH): Weight: 87g Metal Housing Receiver Ports: RJ45 Female, 1x USB 2.0 Type A Female,3.5/1.35mm Outer/Inner DC socket Dimensions (WxDxH): Weight: 86g Metal Housing Package Contents 1x USB 2.0 1-port CAT5/6 Extender (150m) 1x 5V 2A DC Power Adapter 1x USB 2.0 Type A/B Cable 1x User Manual Weight: 0.5350 kg
