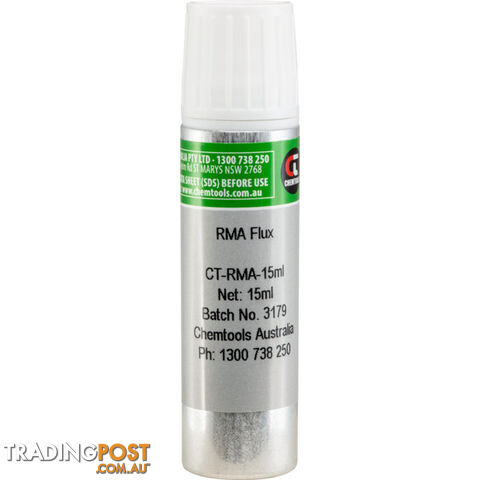

CTRMA15ML 15ML RMA SOLDER FLUX BOTTLE

LIQUID FLUX, ROSIN MILDLY ACTIVATED (RMA) - 15ML

A stable RMA liquid flux supplied in a convenient 15ml bottle . The flux is an ambercolour liquid and ideal for use with multi-layer, surface mount, densely populated and complex boards.

MFR301 is a medium solids, mildly activated liquid flux with a solvent rosin activation formulated to provide a post-process flux residue that is both insulating and non-hydroscopic and does not require cleaning. As a mildly activated rosin based flux, MFR301 offers a wide process window, good cleaning properties, and excellent thermal transfer.

FEATURES:
Faster throughput, fewer defects, less touch-up
Residues are easily removed
Ideal for single and double sided PTH boards, multilayer and bottom-side SMD applications
Solder spread is up to 50% greater than conventional RMA fluxes assuring excellent penetration of plated through holes.
Excellent Rework flux
Best PTH capillary wetting, especially on Multilayer Boards
Non-Corrosive, under normal conditions

SPECIFICATIONS:

Low-medium solids, mildly activated liquid flux with a solvent rosin activation, formulated to provide a post-process flux residue that is both insulating and non-hydroscopic and does not require cleaning.

ChemTools RMA Flux, has a unique RMA proprietary formulation flux that combines superior mobility and spread with faster initial wetting action.

It is more effective and will maintain operating activity longer than conventional RMA type fluxes. It has improved migration properties that assist wetting of throughholes in multilayer and bottom-side SMD applications.

Solder spread is up to 50% greater than conventional RMA fluxes assuring excellent penetration of plated through holes.

ChemTools flux can be used with Soldering Irons, De-soldering irons, Rework Solder Fountains, Wave Soldering Equipment and Hot Air Rework Tools.


Weight: 0.0300 kg
Barcode Number: 9342114002666
