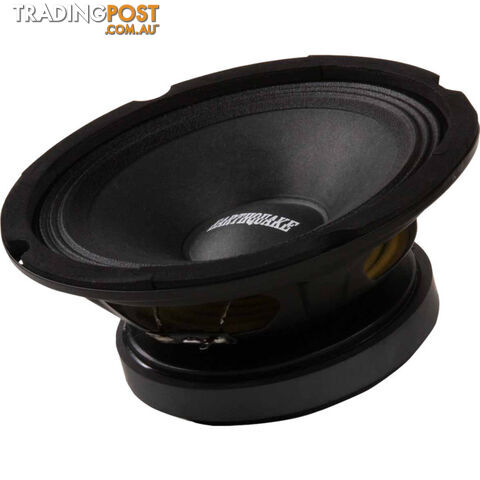

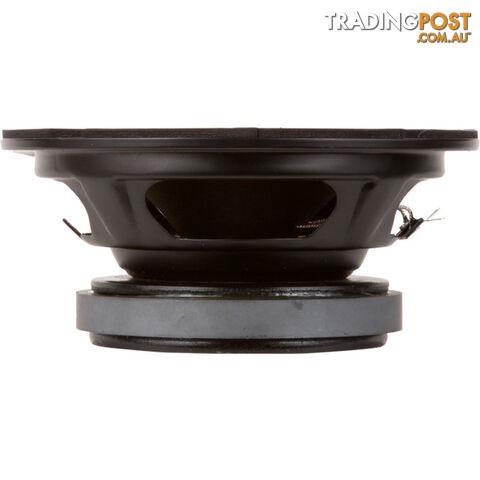

EQ6-8 6.5CLOTH SPEAKER-VENTED BASKET 6.5 INCH MIDBASS, 65W, 8 OHM

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications. Because of their relatively highresonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response. FEATURES High efficiency / sensitivity Multi roll cloth surround New longer lasting, low mass cone Stamped steel basket with jet-black finish Enhanced sound quality Heavy duty ferrite magnets 8-Ohm impedance Edge-wound aluminum bobbin voice coils Low harmonic distortion Max output @ low wattage Vented T-Yoke Bumped Back Plate SPECIFICATIONS Size: 6.5" Midbass Fs: 112Hz Frequency Response: 112Hz - 10kHz Max Power: 50W Impedance: 8Ω Sensitivity: 96dB Mounting Depth: 69.4mm Cut-out Diameter: 144mm EQ6-S8 Manual PDF file Weight: 2.12 kg Barcode Number: 168975910141
