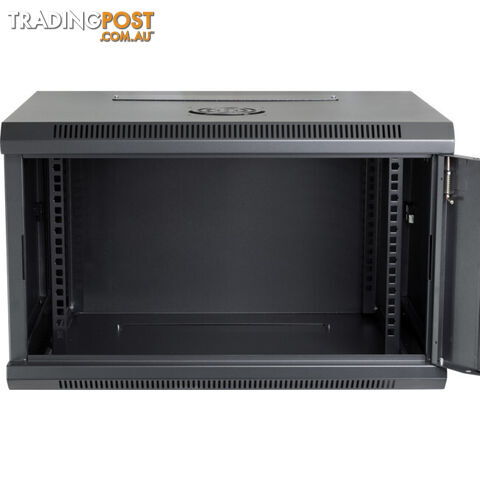

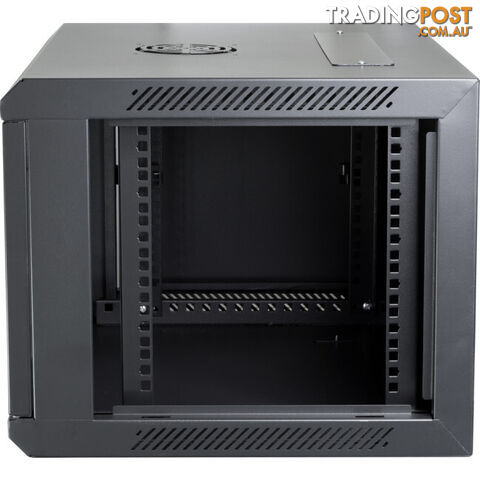

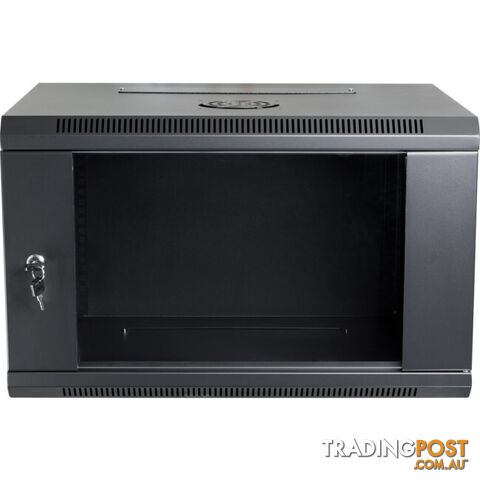

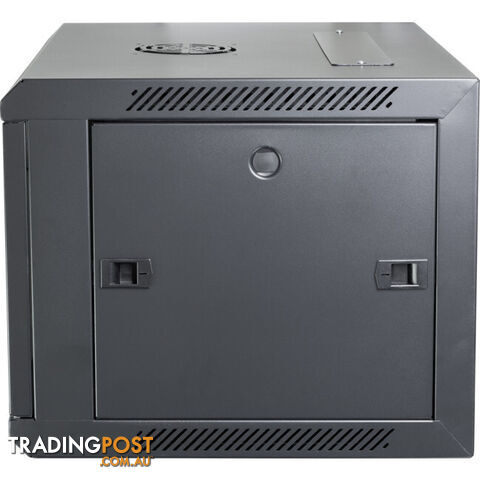

WMC6U 6RU WALL MOUNT CABINET 600X450MM HEIGHT 368MM FRONT GLASS DOOR

FEATURES:
Pre-assembled 6RU wall mount cabinet 368mm height
Welded frame and stable structure
Standing or wall mounting installation
Easy wall mounting bracket installation
19-inch EIA-compliant standard rack frame
Quick removable side panels
Top/Bottom cable entry knock-out plates
Tempered glass front door with over 180 degrees of turning angle
Easy fan installation with the fan cutout on the top cover
Removable hinges to change the front door swing direction
L-shaped mounting profile, easy to adjust on the mounting rail
A wide range of optional accessories allows you to adjust the cabinet to your own needs
Supplied with 10 sets of screws & nuts
Supplied with 2 door keys

SPECIFICATIONS
Material: Quality SPCC cold-rolled steel
Thickness: 1.0mm
Width: 600mm
Depth: 450mm
Height: 368mm (6RU)
Rail width: 19inch EIA-compliant
Loading capacity: 60 KG
Protection class: IP20
Surface finishing: Degreasing, Pickling, Phosphating, Powder-coated,
Fan size suits: 120*120mm
Tempered glass thickness: 5.0mm
Compliance: ANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92



Barcode Number: 9328202035042
