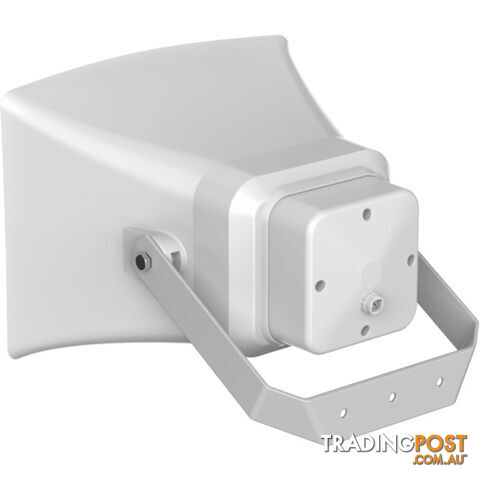

CHA660 AUDAC 6.5" 2 WAY 60W 100V HORN IP66 - STAINLESS STEEL BRACKET

AUDAC CHA660 2-WAY HORN LOUDSPEAKER 6.5" The CHA660 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications. The construction is composed of a1" high frequency compression driver and a 6.5" mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA660 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music. It features an RMS power handling of 60 Watt and a max power handling of 120 Watt. The sensitivity measures 99 dB while a maximum continuousSPL of 116 dB can be achieved. The frequency response (±3 dB) starts from 100 Hz up to 16 kHz. A multi-tapping line transformer allows the speaker to beused in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 60 Watt, 30 Watt, 15 Watt and7.5 Watt are available. The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.   KEY FEATURES IP66 Ingress protection Multi-tapping 70/100V line transformer 6.5" Low frequency loudspeaker 1" High frequency horn tweeter High quality UV and impact resistant ABS construction   SYSTEM SPECIFICATIONS Speaker type 2-way horn speaker Max. Power 120 W RMS Power 60 W Sensitivity (1W/1m) 99 dB Ingress Protection rating IP66 Drivers 6.5” MF / LF Woofer Connection AWX5™ waterproof Line Transformer Tappings 1 83 ? - 100 V / Not used - 70 V / 60 W 2 167 ? - 100 V / 60 W - 70 V / 30 W 3 333 ? - 100 V / 30 W - 70 V / 15 W 4 667 ? - 100 V / 15 W - 70 V / 7.5 W Sound Pressure (Max. W/1m) @ 100 V 116 dB Frequency Response (± 3 dB) 100 Hz - 16 kHz Crossover Type Passive built-in Dispersion Horizontal 100° Vertical 60° Drivers HF 1" HF Horn tweeter PRODUCT FEATURES Dimensions 420 x 335 x 400 mm (W x H x D) Weight 6.7 kg Construction Impact & UV resistant ABS Colours Light grey (RAL7035) Mounting & handling Powder coated steel Accessories Included Mounting bracket     Â
