HEX70SL-TX SLIMLINE HDBASET TRANSMITTER 1080P-70M & 4K 60HZ 4:2:0- 40M

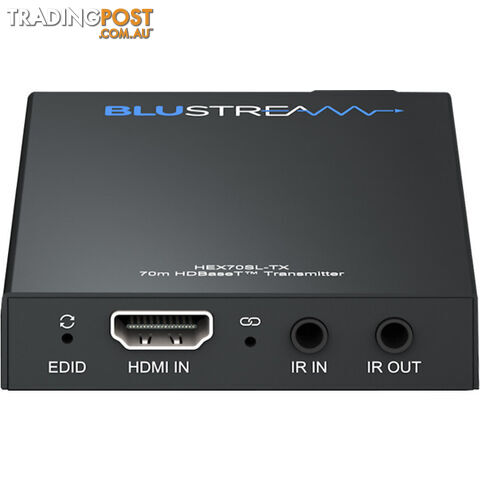

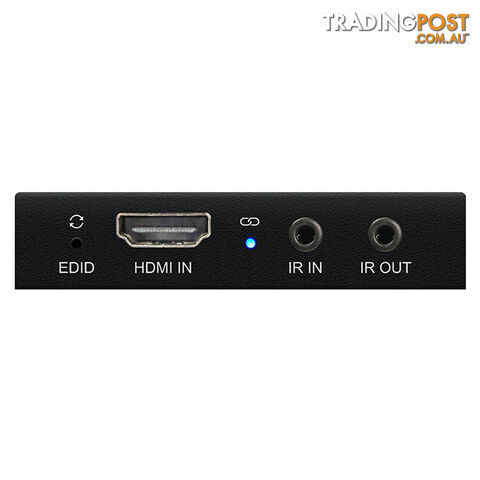

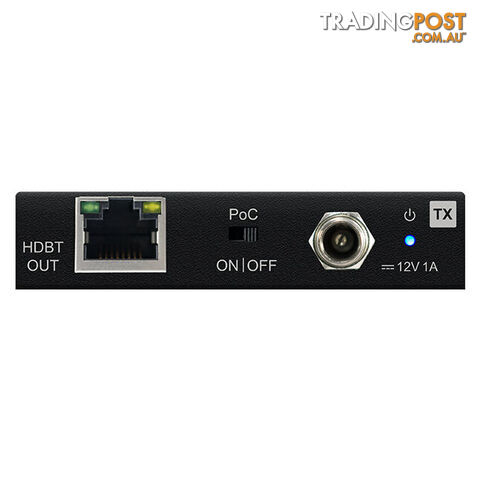

BLUSTREAM HEX70SL-TX - SLIMLINE HDBASET™ TRANSMITTER The HEX70SL-TX 4K HDBaseT™ Transmitter offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.   KEY FEATURES Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency Enhanced slimline chassis Extends HDMI 1080p up to a distance of 70m over a single CAT cable Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission Bi-directional IR pass-through Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included) Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility HDCP 2.2 compliant   SPECIFICATIONS Video Input Connectors: 1 x HDMI Type A, 19-pin, female Video Output Connectors: 1 x HDBaseT™ RJ45 connector IR Input Ports: 1 x 3.5mm stereo jack IR Output Ports: 1 x 3.5mm mono jack EDID: Pin hole button Power Supply: 12V/1A DC Dimensions: 106mm x 73mm x 16mm (LxWxH) Shipping Weight: 0.8kg Operating Temperature: 32°F to 104°F (-5°C to 55°C) Storage Temperature: -4°F to 140°F (-25°C to 70°C)   BOX CONTENTS 1 x HEX70SL-TX 1 x Mounting Kit 1 x Quick Reference Guide Weight: 0.3110 kg Barcode Number: 9340242003331
