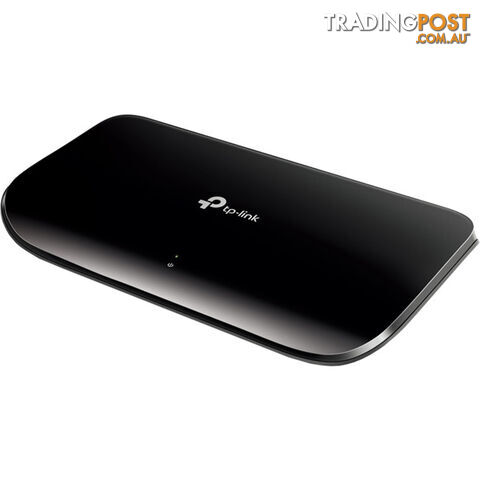

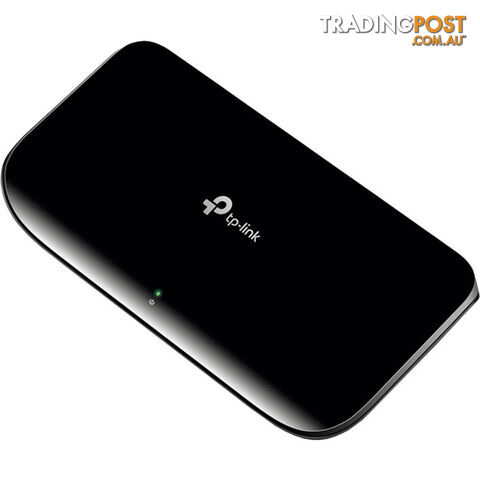

TLSG1008D 8 PORT ETHERNET GIGABIT SWITCH WITH 10/100/1000M DESKTOP

8-PORT 10/100/1000M GIGABIT ETHERNET DESKTOP SWITCH - TP-LINK

8-port 10/100/1000M Gigabit Ethernet Desktop Switch Supports MAC address self-learning and auto MDI/MDIX.

The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamlessand standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have tomove large files across the network almost instantly.

Fully Complies with IEEE802.3, 802.3u and 802.3ab standards
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Plastic case, desktop or wall-mounting design
External power adapter supply



Standards and Protocols

 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP


Basic Function

 Wire-speed Performance


 MAC Address Auto-Learningand Auto-aging


 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode


Backbound Bandwidth

 16Gbps


MAC Address Table

 4k


Forwarding Rate

 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port


Transmission Method

 Store-and-Forward


Ports

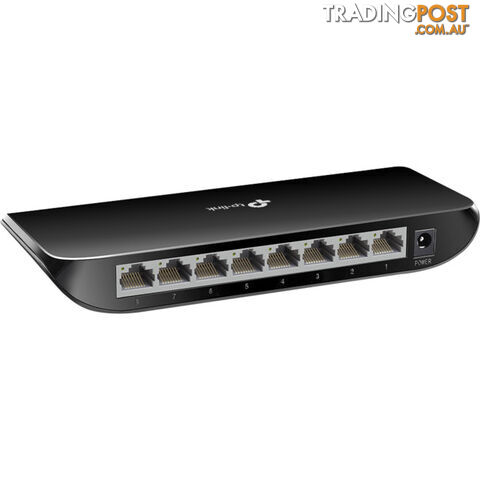

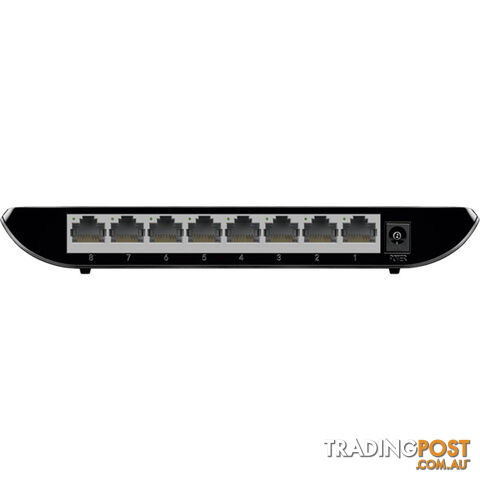

 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)


Network Media

 10Base-T: UTP category 3,4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 1000Base-T: UTP category 5, 5e cable (maximum 100m)


LED Indicators

 Power, 10/100M, 1000M


Safety & Emission

 FCC, CE


Dimensions (W*D*H)

 7.9*5.5*1.1 in. (200*140*28 mm)


Environment

 Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
 Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing


Power

 External Power Adapter

Weight: 0.4210 kg
Barcode Number: 6935364092313
